Battery Hookup

24v 10.8ah 276.48wh Lifepo4 Module with BMS

Regular price $44.99 $0.00 Unit price per

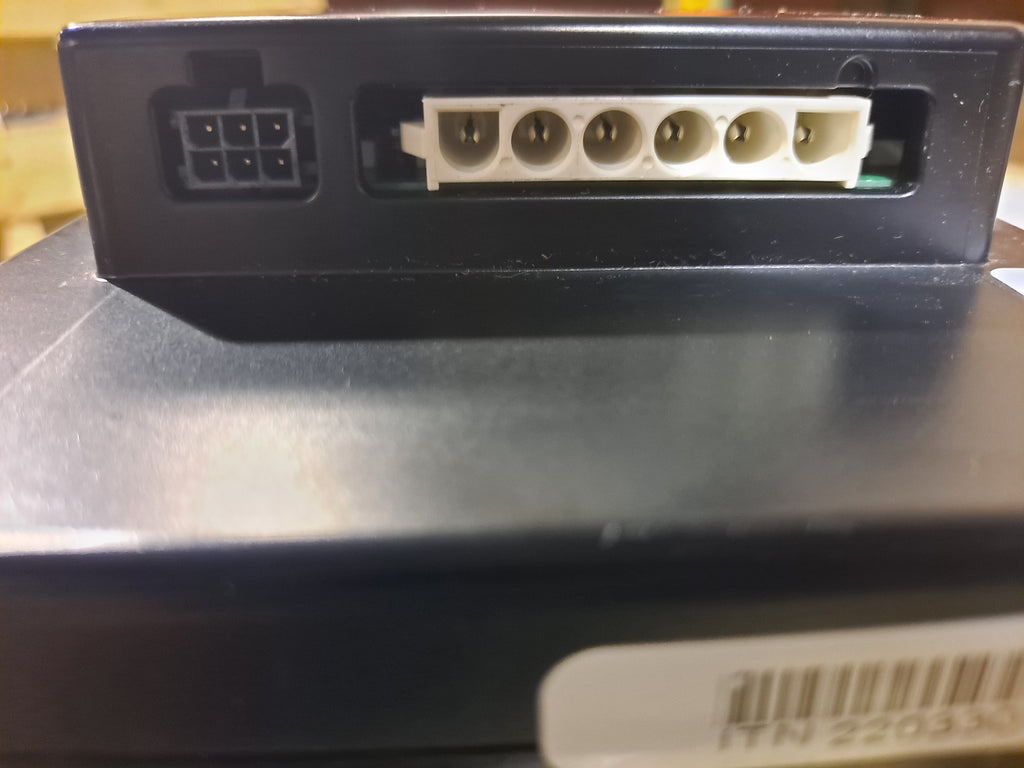

These batteries come out of hospital computer carts. They are in perfect working condition. The white strip connector with the 6 connections the 3 connections on the right go to the positive and the 3 on the left go to the negative. You can charge and discharge through them. These are excellent batteries but the connector is a little weird to connect without the female connector. You can solder to the pins or just dremel the little black plastic top off and you'll have access that way to the connections.

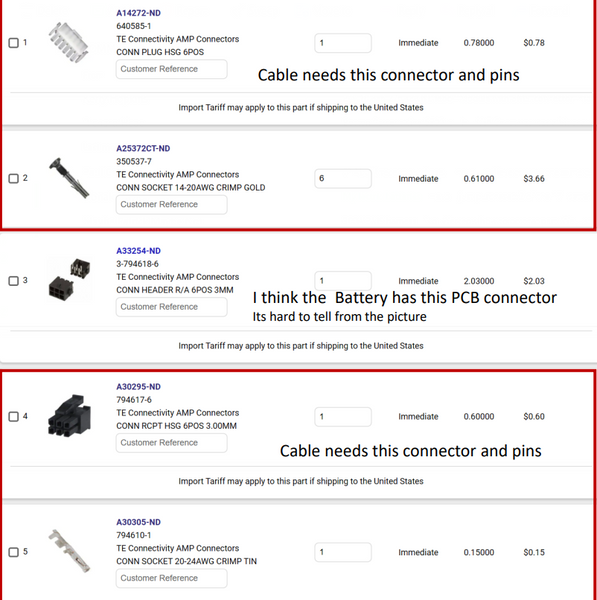

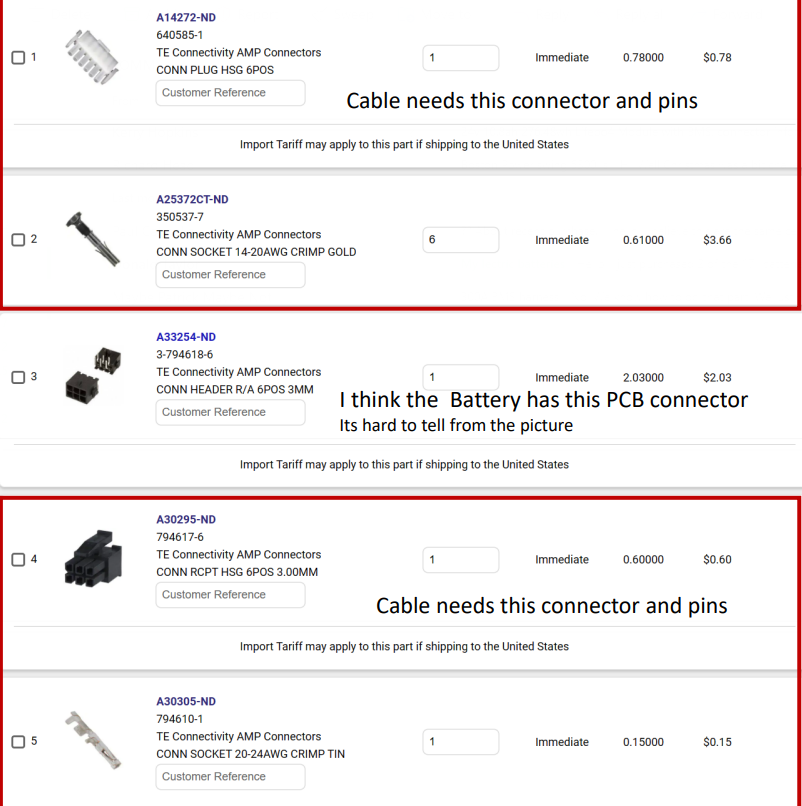

In the 4th photo I attached an image showing the connectors that fit. One of our awesome customers Kerry took time to help us out here and find the connectors. If you want the right connector those should work just fine. Thank you Kerry.

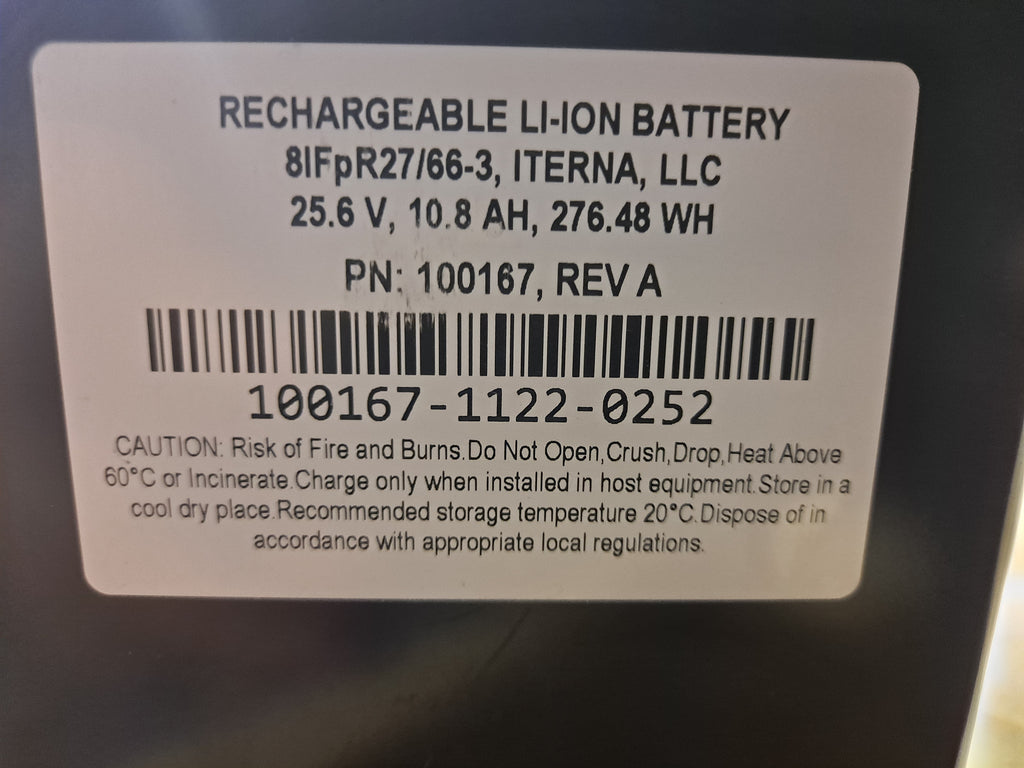

25.6v 10.8ah 276.48wh

These are medical grade lifepo4 batteries with a BMS. You should limit charge and discharge to around 10a although these packs can handle more amps we just don't know the limit. Likely around 20-30a but 10a is a reasonable 1c charge and discharge rate.

Fully charged is 29.2v and fully discharged is 20v.

Dimensions are 7" x 4.5" x 3.5"

Weight is 5.5 lbs

These have a little more capacity than the K2 modules but the connector you may need to cut away the small plastic top part. So it is more capacity for the same price but an atypical connector.
