Battery Hookup
21.6v 46ah 6s18p 108 2550mah 18650 cell module with BMS
Regular price
$149.99

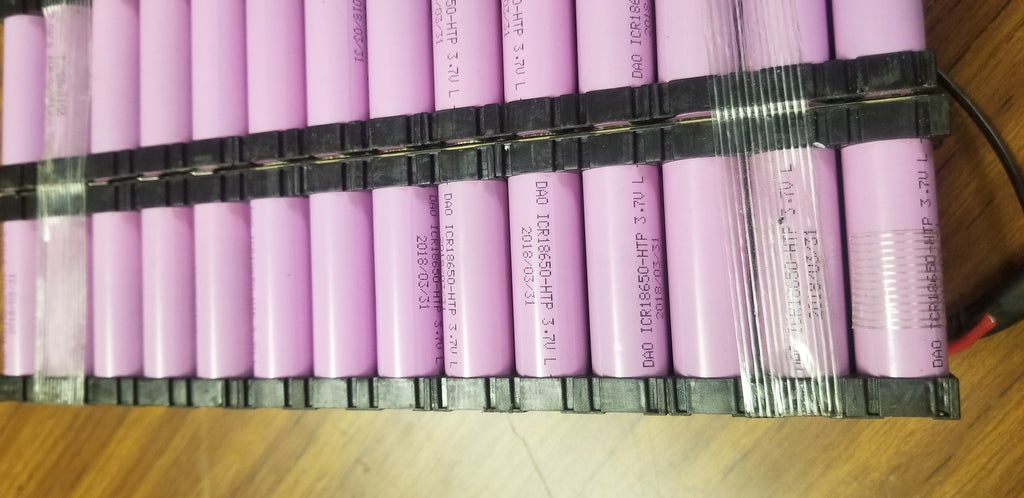

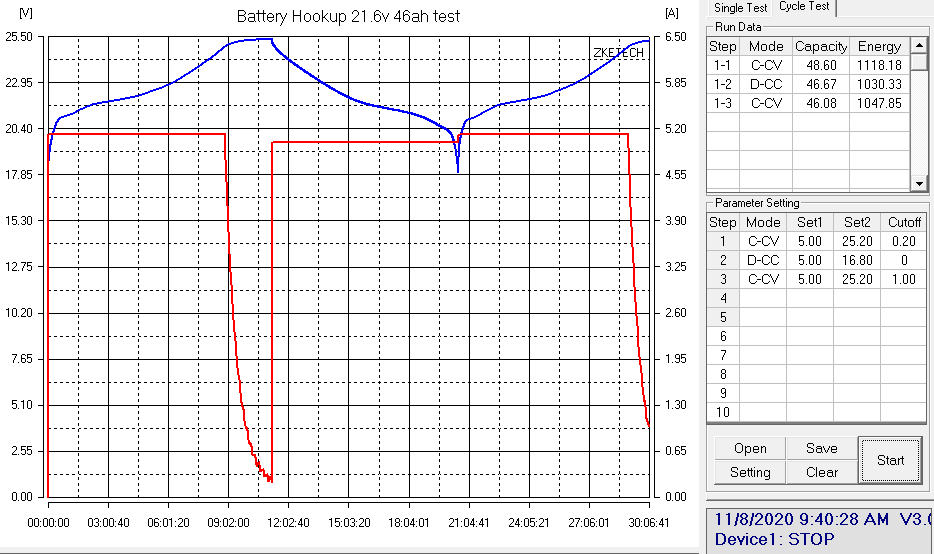

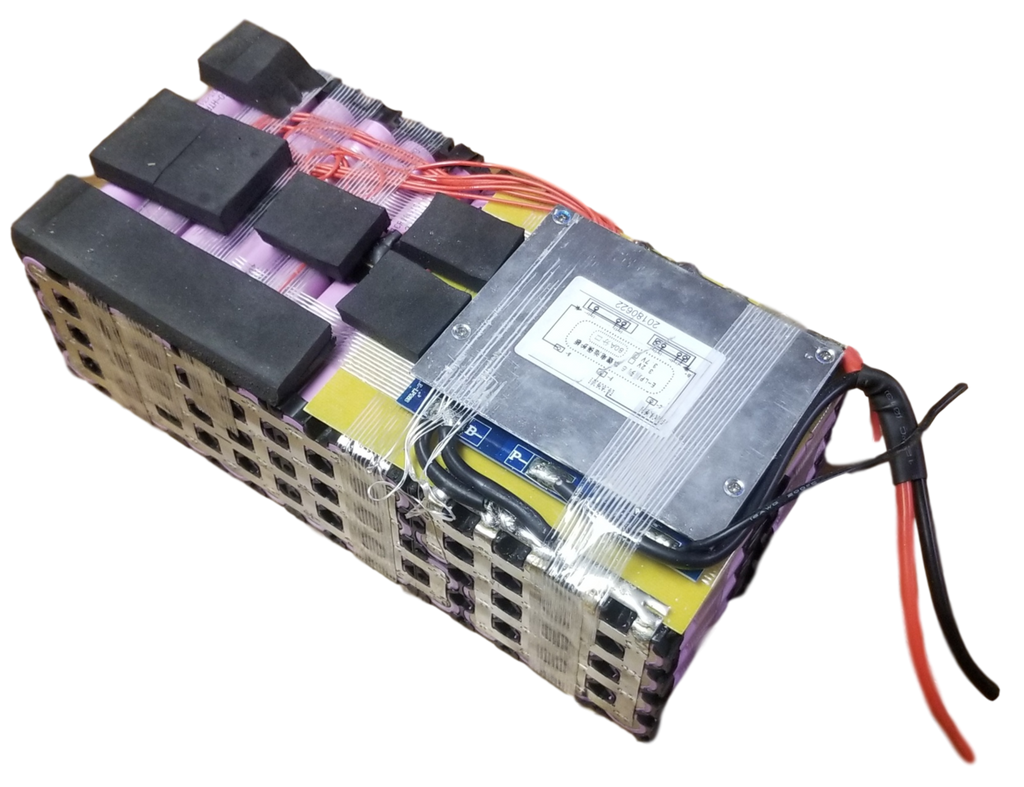

The 4th photo shows the actual test conducted on this module. These use 2550mah cells and they tested 2.2% above that so this module is testing like new and came out of an overstock portable power supply. Dates on the cells are 2018 dates. The BMS is an 80a rated for discharge bms and it also has a separate charge port but you can charge through either port, you'll get overcharge protection when charging through the charge port. Charge rate is 40a max continuous. The BMS date is 6/22/2018. The date of the unit this came out of was 2019 on the box. 1.03kWh. 6s lithium ion. 25.2v fully charged. 16.8v fully discharged. As you can see with the discharge graph 98% of the power is stored above 20v so this would work great with a 24v inverter that has a 20v cutoff. Pack weight is 12 lbs.
