1s6p 6000 CYCLES LITHIUM ION POLYMER 3.65V 264ah
1s6p 6000 CYCLES LITHIUM ION POLYMER 3.65V 264ah
1s6p 6000 CYCLES LITHIUM ION POLYMER 3.65V 264ah
Battery Hookup

1s6p 6000 CYCLES LITHIUM ION POLYMER 3.65V 264ah

Regular price $140.00 $0.00 Unit price per
Just 1 left.

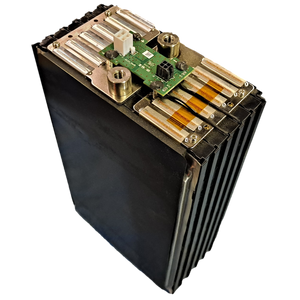

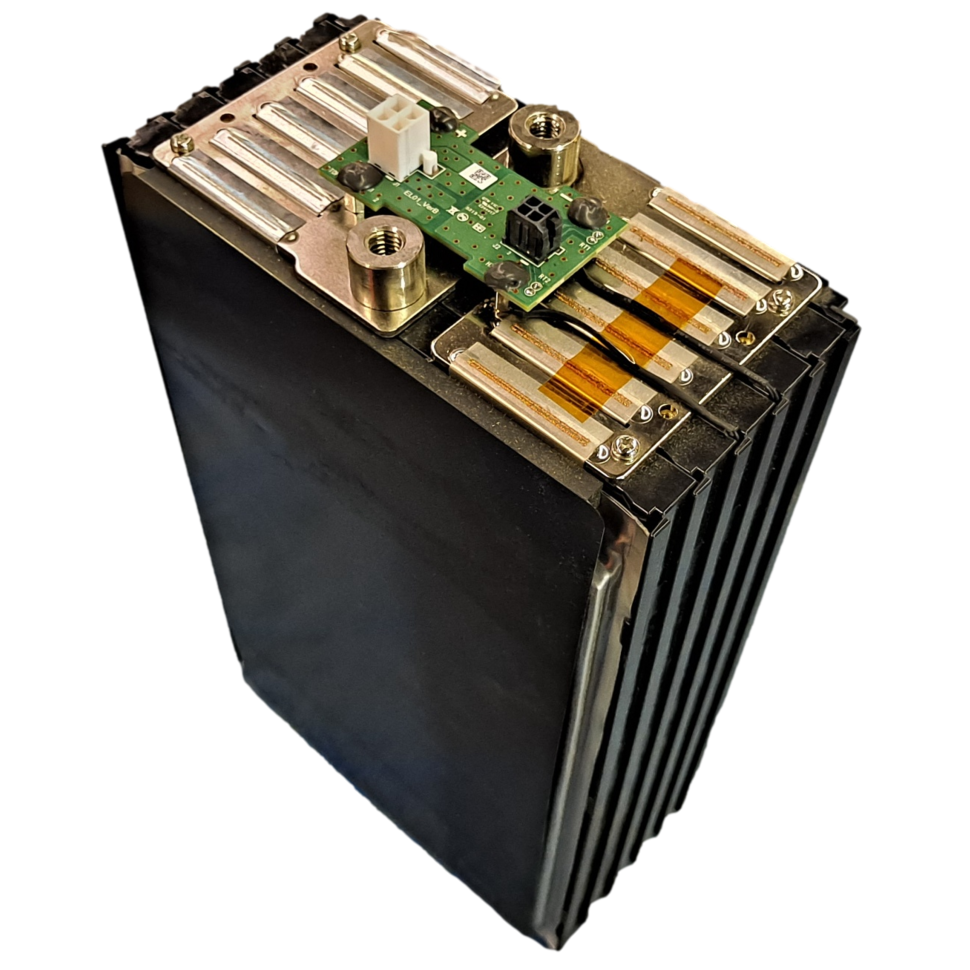

THIS BATTERY IS BUILT WITH ONE OF THE GREATEST CERAMIC CELLS ON THE MARKET.

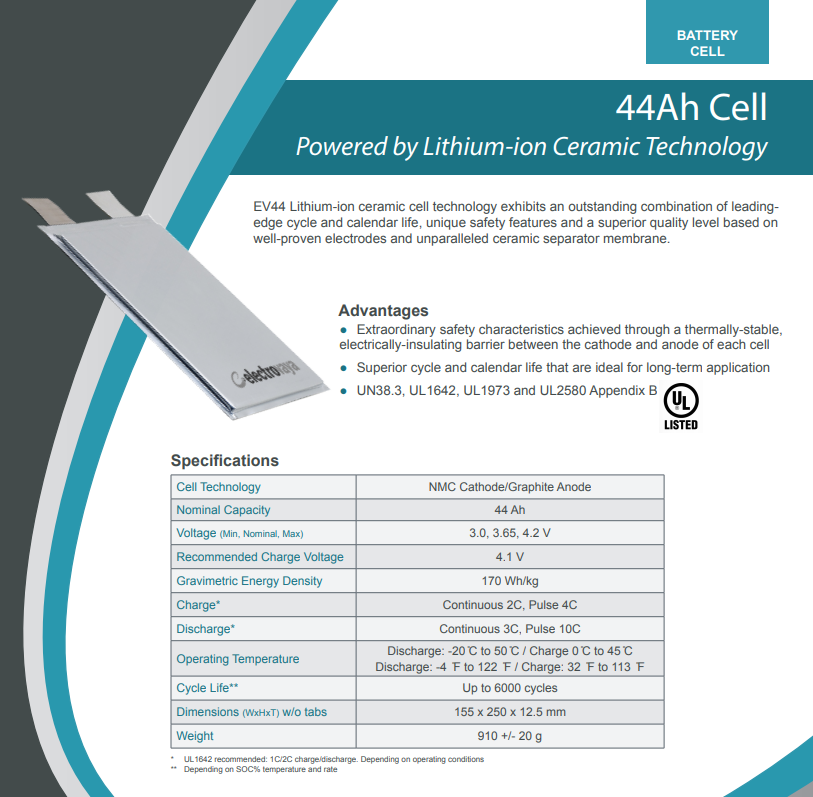

RATED FOR UP TO 6,000 CYCLES, THESE ARE MADE WITH LITHIUM ION CERAMIC TECHNOLOGY. THE 2ND PHOTO SHOWS THE DATASHEET OF THE CELLS USED IN THIS MODULE. THIS MODULE IS MADE OF 6 OF THOSE CELLS IN 1S6P CONFIGURATION. YOU ARE GETTING AN AMAZING DEAL ON AN ALREADY ASSEMBLED 10.95V NOMINAL BATTERY THAT TESTS AROUND 1KWH. ALL YOU NEED IS A BUSBAR OR WIRES TO CONNECT THEM IN LARGER SERIES OR PARALLEL PACKS.

EACH PACK CAN DRAW 264A CONTINUOUS OR 888A PULSE FOR 10 SECONDS. OF COURSE YOU WOULD NEED COMPRESSION. I WOULD NOT RECOMMEND THESE FOR CAR AUDIO, JUST USE THEM IN AN ENERGY STORAGE APPLICATION. DUE TO THE HIGH CYCLE LIFE THESE ARE PERFECT FOR A SOLAR STORAGE SYSTEM.

FULLY CHARGED THIS MODULE WILL BE 4.2V. DISCHARGED WOULD BE 2.8V.

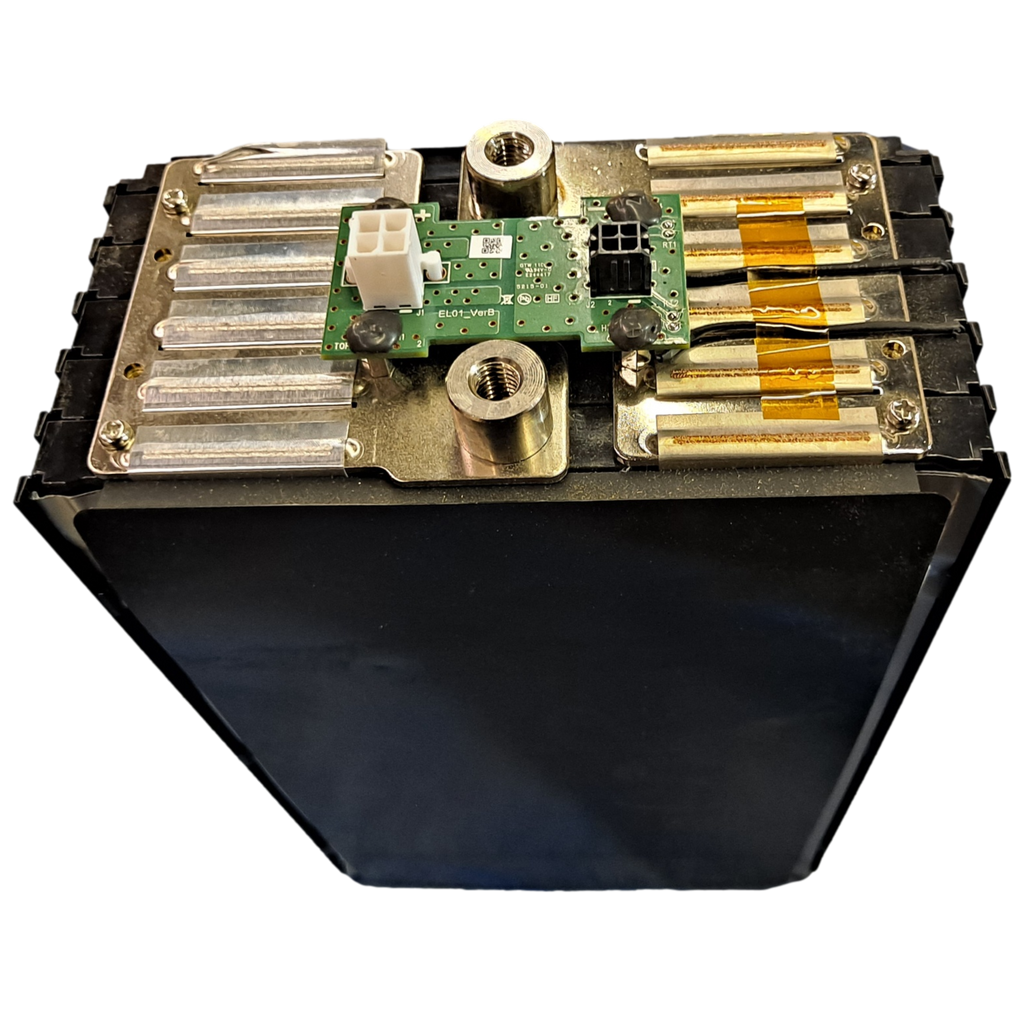

THERE IS NO BMS, EACH PACK HAS A PCB THAT LEADS TO THE PIN CONNECTOR. THE PIN CONNECTOR GIVES YOU EASY ACCESS TO THE BALANCE LEADS IF YOU WANT TO ADD YOUR OWN BMS OR BALANCER.

 Voltage
(Min, Nominal, Max) 4.2, 3.65, 2.8 V
Nominal Energy
1.0 kWh
Recommended Charge Voltage
4.2 V
CHARGE CURRENT
88A CONTINUOUS, PULSE 176A
DISCHARGE CURRENT
264A CONTINUOUS, 888A PULSE
Operating Temperature
RECOMMENDED: Discharge: -20 ̊C to 50 ̊C / Charge 0 ̊C to 45 ̊C
MAX: Discharge: -4 ̊F to 122 ̊F / Charge: 32 ̊F to 113 ̊F
Cycle Life
Up to 6000 cycles*
Dimensions
(WxDxH) 175 x 85 x 280 mm
Weight
7.2 kg (JUST UNDER 17 LBS.)
