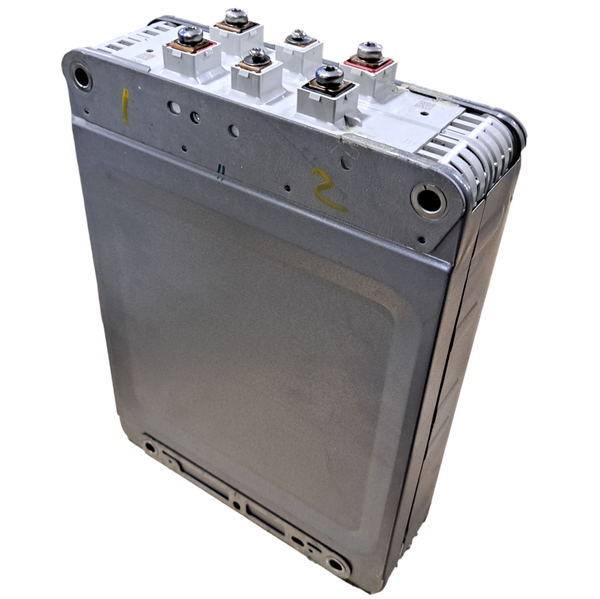

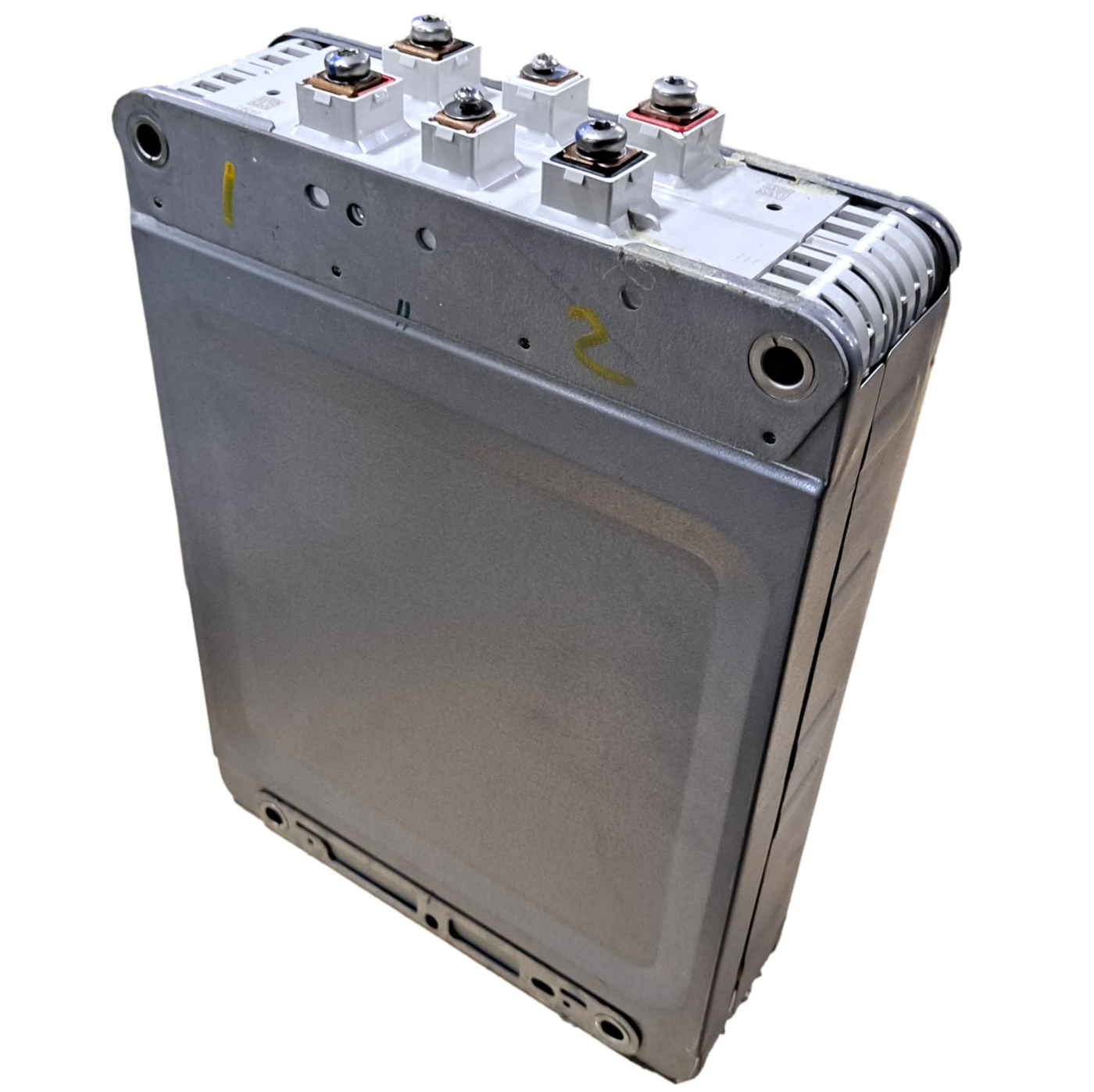

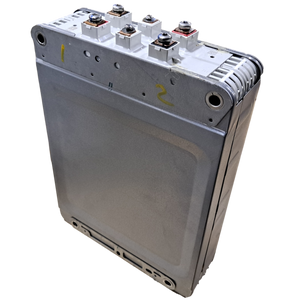

15v 42ah 630wh Lithium Ion Module

These batteries are just like the leaf batteries. This 1 battery has 2x modules compressed together. Each of the 2 modules have 2 cells in series. With this 1 complete battery you can make a 4s 15v 42ah 630wh. Bolts are included. You will have to add your own busbars.

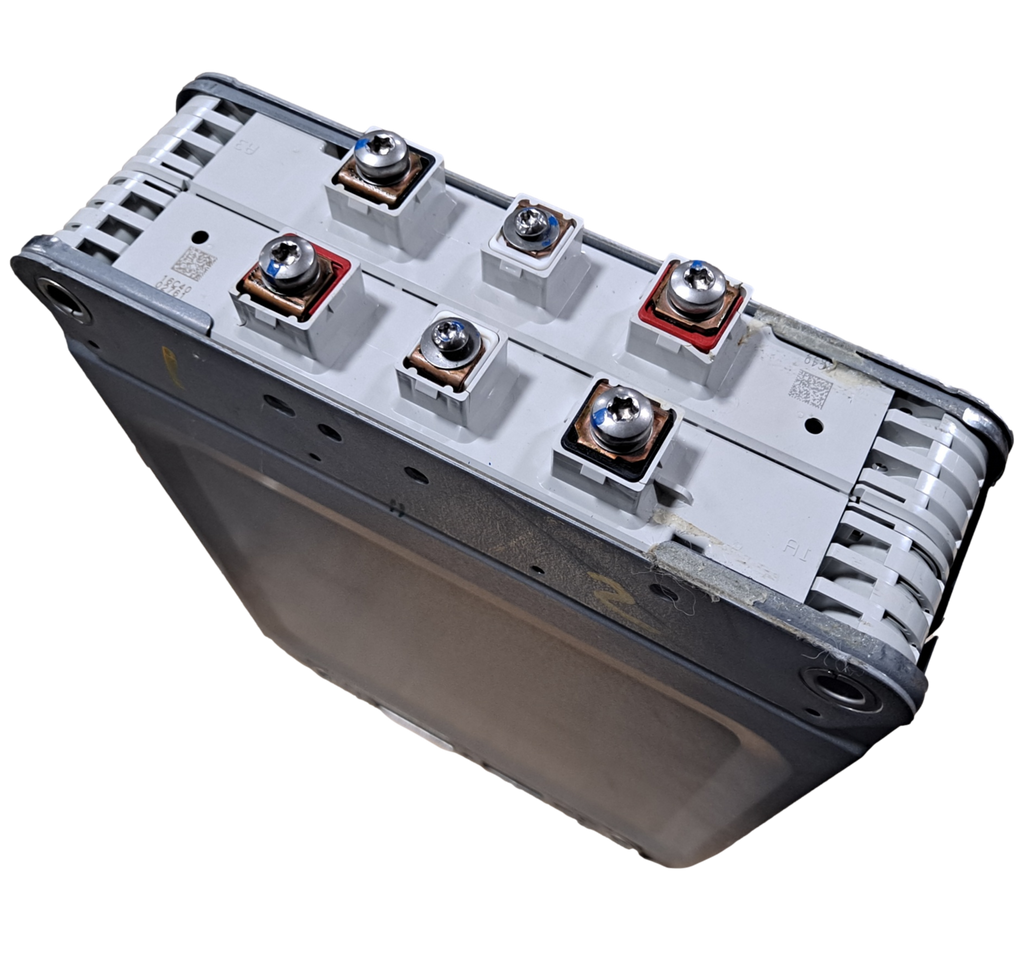

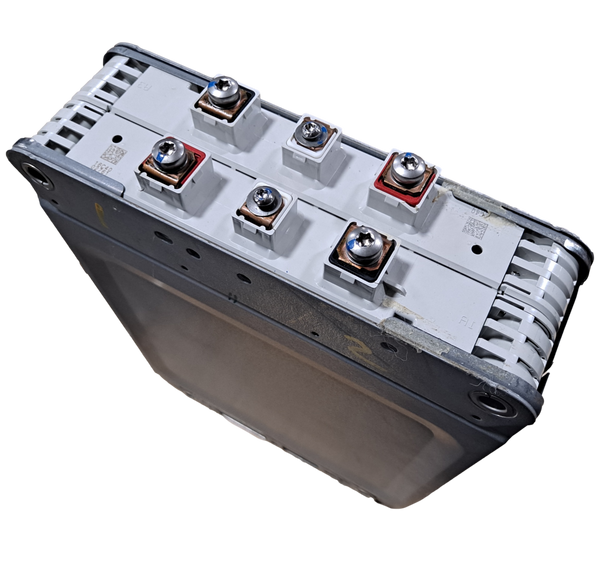

Black post on each module is the negative, the center post is where the positive of cell 1 and the negative of cell 2 are connected in series. The red is the positive of the 2nd cell. So the 2 cells in each module are already connected in series. To make a 4s module just connect a busbar from the negative post of the one module to the positive post of the other module. Use the posts for your BMS balance leads.

Weight 19lbs

Dimensions 12.5" x 9" x 2.75"
