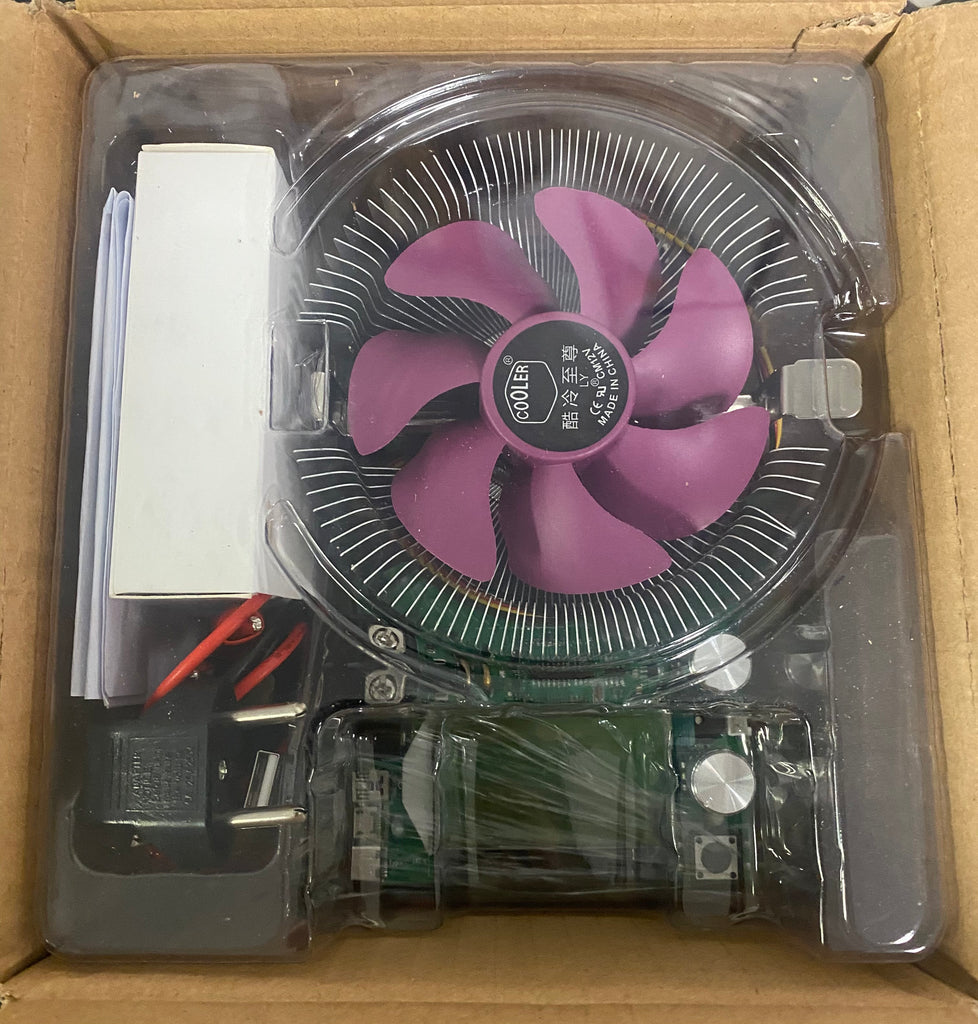

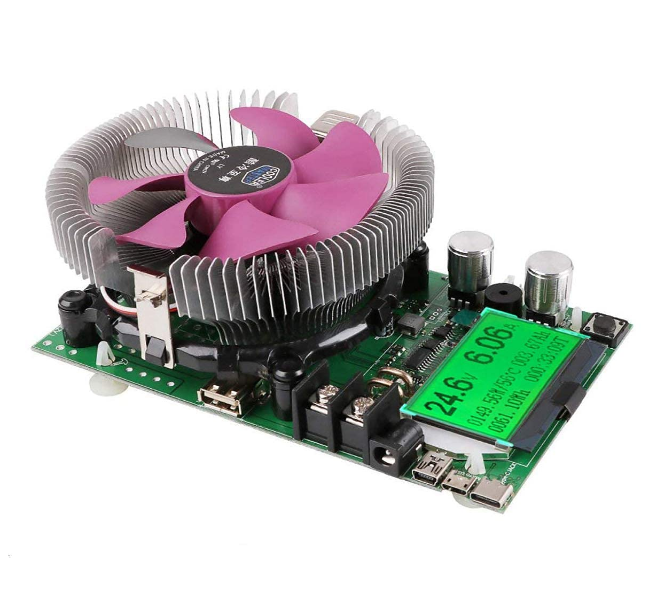

NEW IN BOX - 150w 0-200v Discharge Battery Tester
This one is brand new in the box. These are awesome discharge testers but make sure you use an in line fuse. We used dozens of these discharge units for years and they work great.
You will get the US plug as well. Setting the parameters is a little tricky but you will get the hang of it. Just have to hit the black button twice and hold in to go up in values or three times and hold in to go down in values when setting that all up. Its kind of weird but these work great. The only downfall on these units, which is why we recommend to add a 20a inline fuse, is that we had one go bad and it actually would cause a short instead of an open circuit failure. Using a 20a in line fuse will fix that possible issue. These are nice little units. We used these for over a year steadily and they are built to last, just keep them within a reasonable range.
Specification:
- Input interface/Output interface:100A large current occluding screw column
- Voltage testing range:0.00V~200V;Resolution accuracy:0.01V
- Current testing range:0.00A~20A;Resolution accuracy:0.01A
- Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah
- Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh
- Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W
- Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm
- Temperature measurement range:0~99â,0~99â;Resolution accuracy:1â
- Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s
- Timing testing alarm setting:count down 24 hours Arbitrary setting value
- Small current standby alarm threshold parameter and timing:<2W/0.5 hour; >0.5W begin timing
- 4~30V DC voltage provides electricity for testing system
- Refresh time:>500mS/times;> 500mS/times
- Testing speed rate:about 0.5 times/s
- Over voltage over current setting alarm method:display warming interface alrm users
- Over voltage warning setting range:1~200V
- Low voltage warning setting range:0~190V
- Over current warming setting range:0.2~100A
- Display screen type:micro power consumption crystal module LCM black font green backlight Chinese English display screen
- Size:156x96x58mm
