14.4v 19.2ah 276.48wh with BMS - $97/kWh

$26.99 $0.00

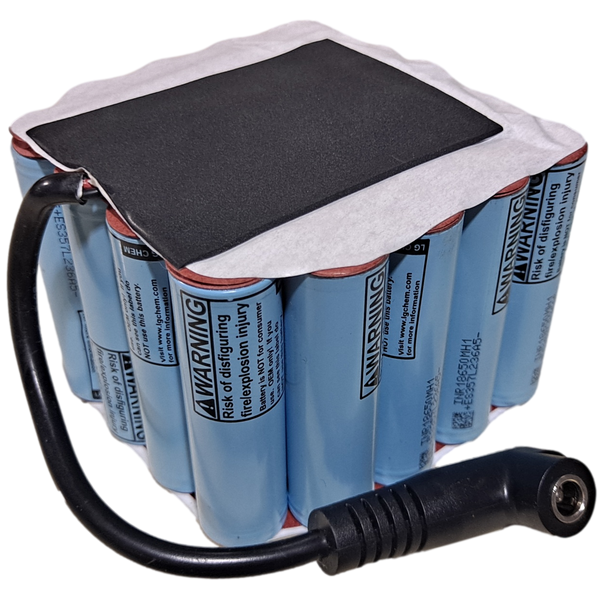

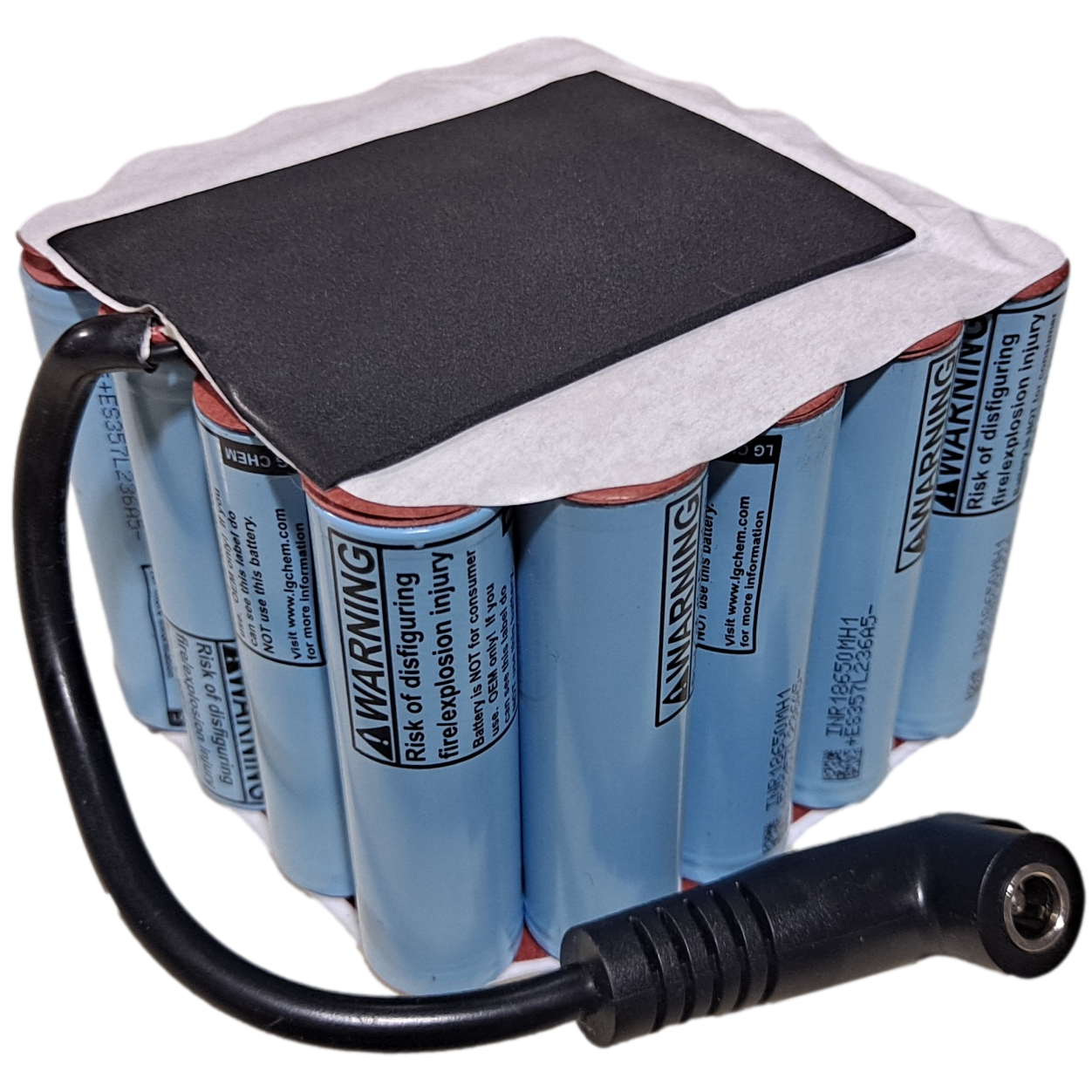

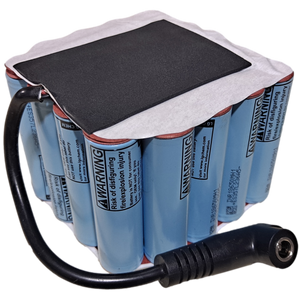

We check each module to make sure they are balanced. Each pack has 24 cells in 4s6p configuration with a 4s BMS. The modules are used but testing great.

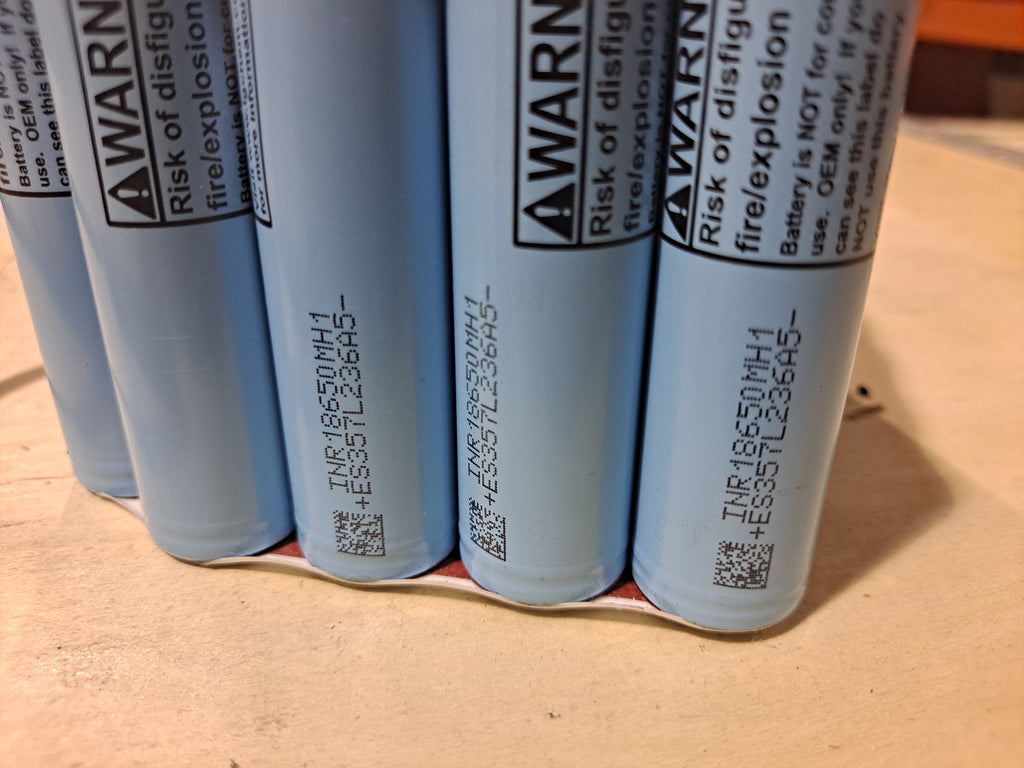

The cells used in these packs are INR18650MH1 cells which are name brand and rated for 3200mah and 10a discharge continuous. You also get a BMS that you can reuse or sell on eBay along with some good wiring and nickel.

Weight per module is 2.5 lbs.

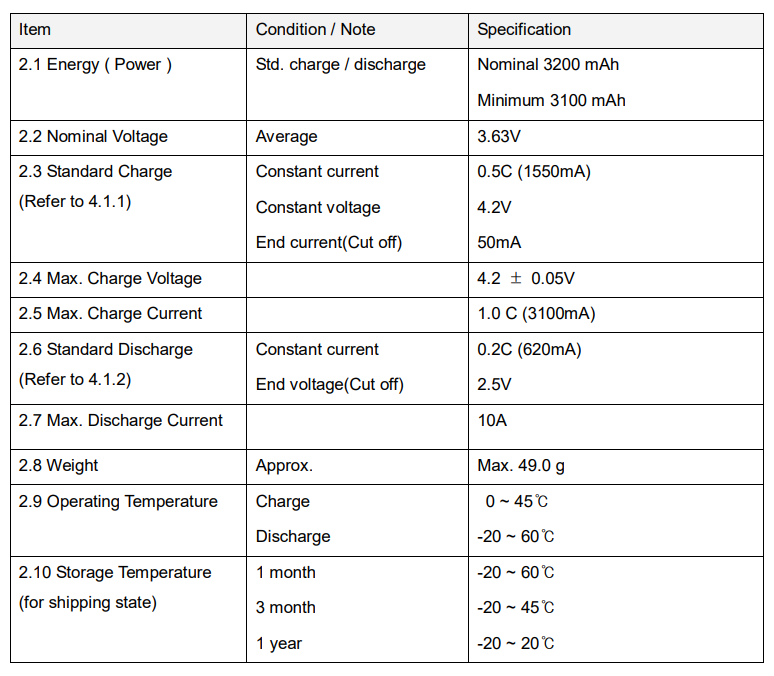

Specs of the cells are in the 4th photo.

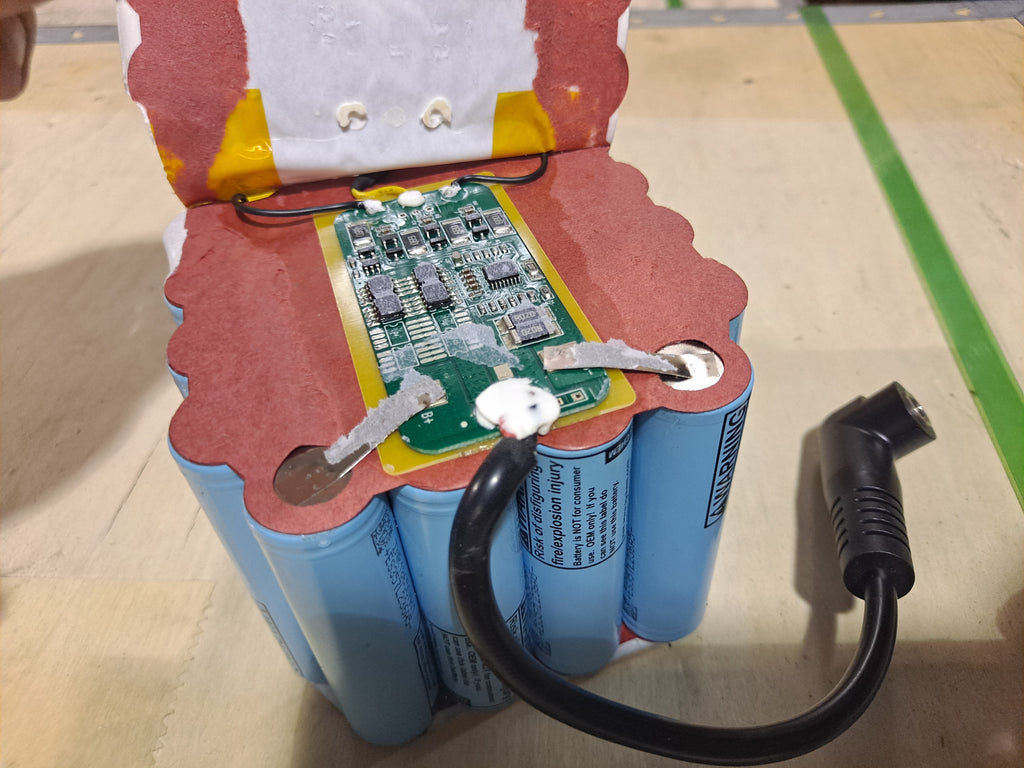

You can charge and discharge through the 2 wires coming out. The BMS appears to be 10a rated but we recommend running up to 5a per pack due to the wire thickness coming out.

Overall these are really nice packs made with one of the best 18650 cells on the market with a BMS.

Fully charged is 16.8v (4.2v per cell) and fully discharged is 11.2v (2.8v per cell).
