12x Toshiba SCiB 2.3v 23ah 24v LTO Module

Regular price $175.00 $0.00 Unit price per

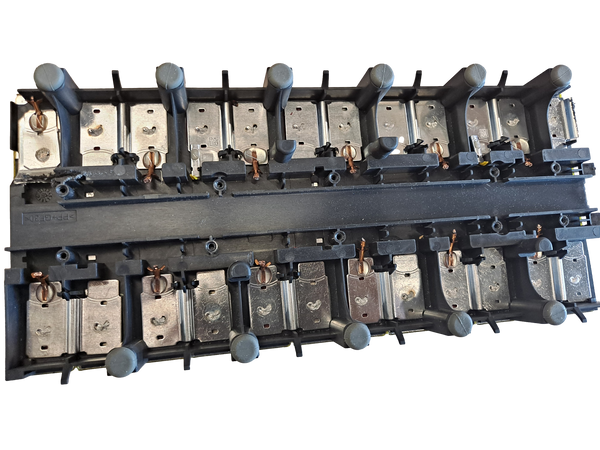

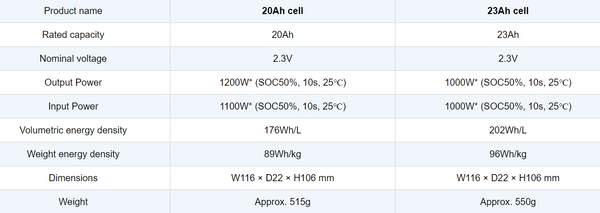

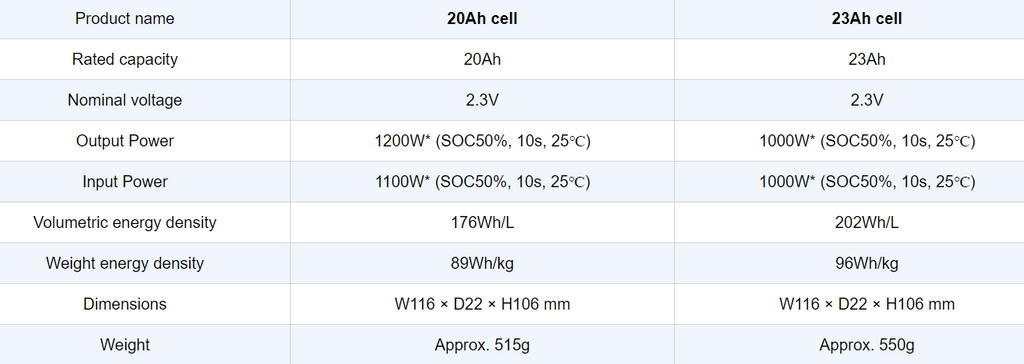

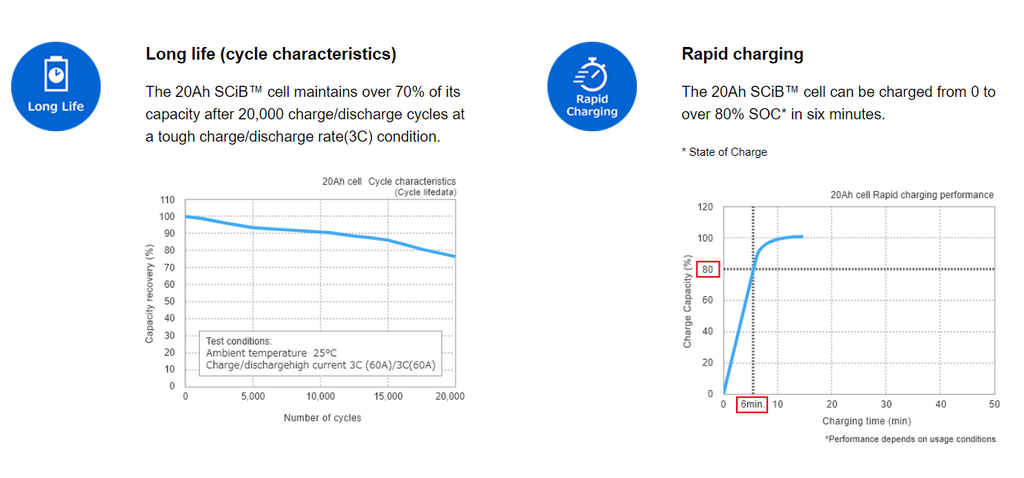

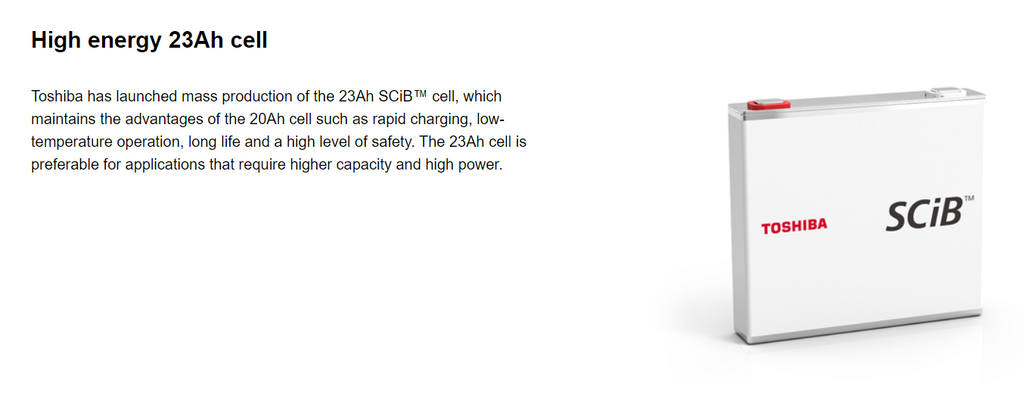

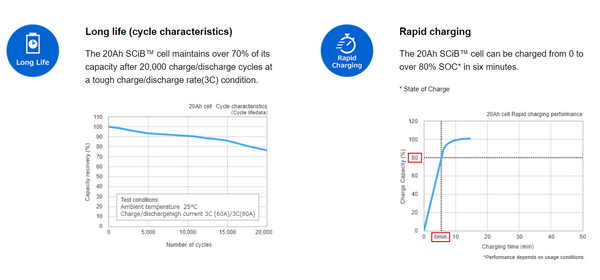

This module has 12 Toshiba SCiB LTO cells inside for just $14.50 per cell. These are the 23ah version cells that are rated for over 20,000 cycles and can be charged and discharged over 430 amps per cell which is almost a 20c rating. At 202wh/L these are a perfect balance of power and energy density. To make it simple each cell can be charged and discharged at 1000w.

The cells have never been cycled because the BMS unit was faulty. It is possible that some cells will be a little different voltage due to the faulty BMS but we guarantee every cell to have good voltage. You may have to balance some cells but every cell is basically new. You can break these modules down to 6s packs by cutting the busbar and plastic down the middle between cells 6 and 7 with a dremel. The busbars have a center piece that is raised and makes for super easy cutting with a dremel tool.

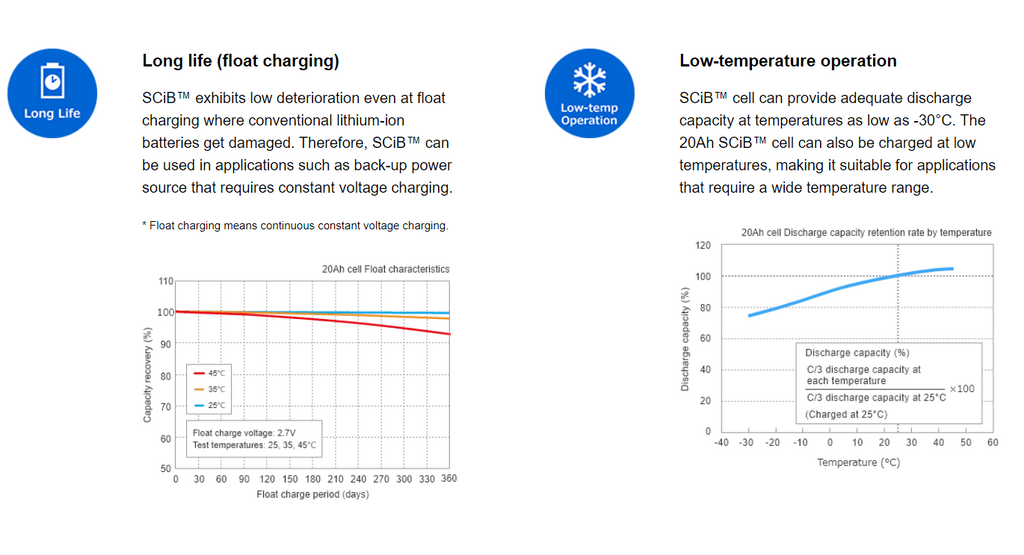

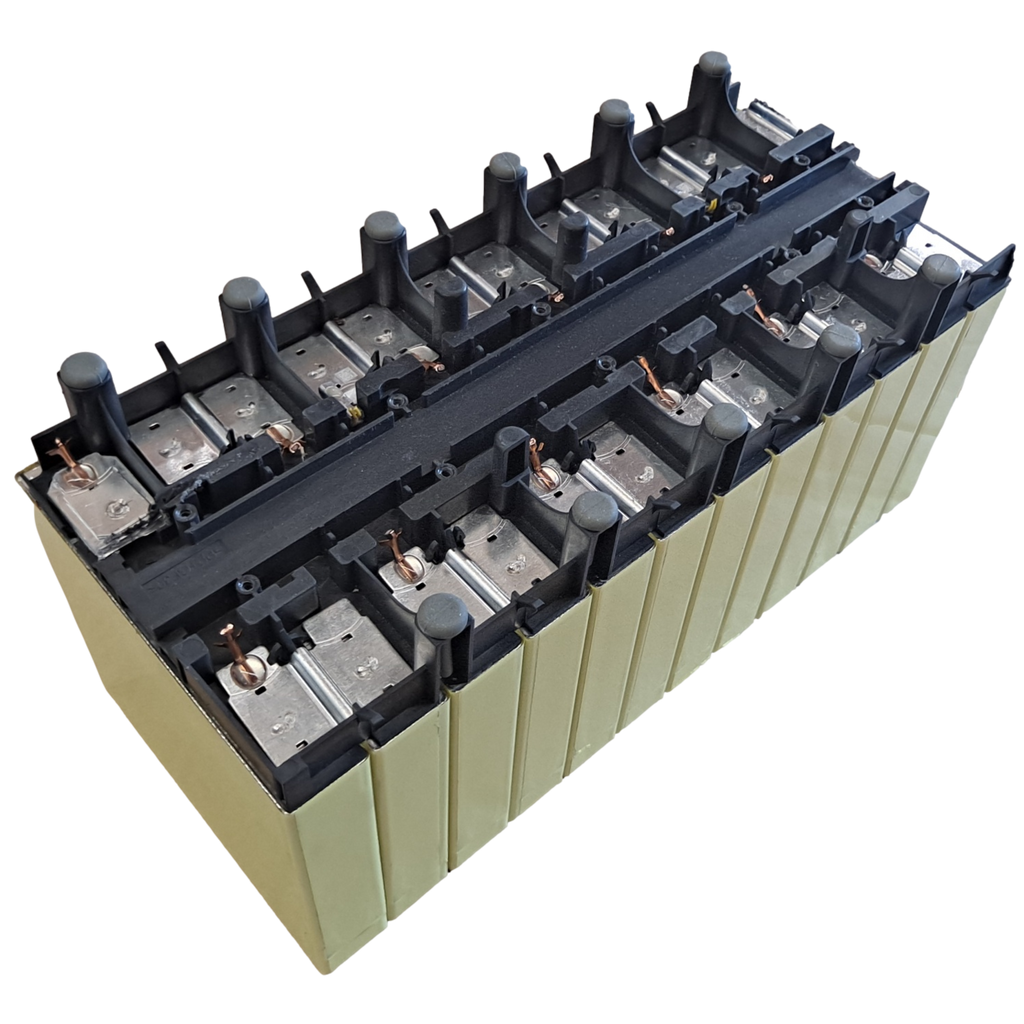

The module has 12 cells in series. 6 cells makes a perfect 12v battery for 12v applications and 12 makes a perfect 24v pack. LTO can be discharged all the way down to 0 volts without issues and the cells can be charged and discharged at -30 degrees Celcius or -22 degrees Fahrenheit. The busbars are laser welded.

At this price you are near 1/3 the cost of the sellers pushing those "grade B or A-" LTO batteries. This way you know you get 100% genuine Toshiba SCiB cells because these modules were being built for government applications.

Full Module dimensions are 10.25" x 5" x 4.5"

Weight of module is 15 lbs

These came out of 36 cell modules that were too heavy to ship ground and had to ship freight so we broke down some of the modules in order to be able to ship them ground.
