12V/24V BUSBARS, HOLDERS, AND SCREWS KIT FOR 38120 HEADWAY
Cells are not included.

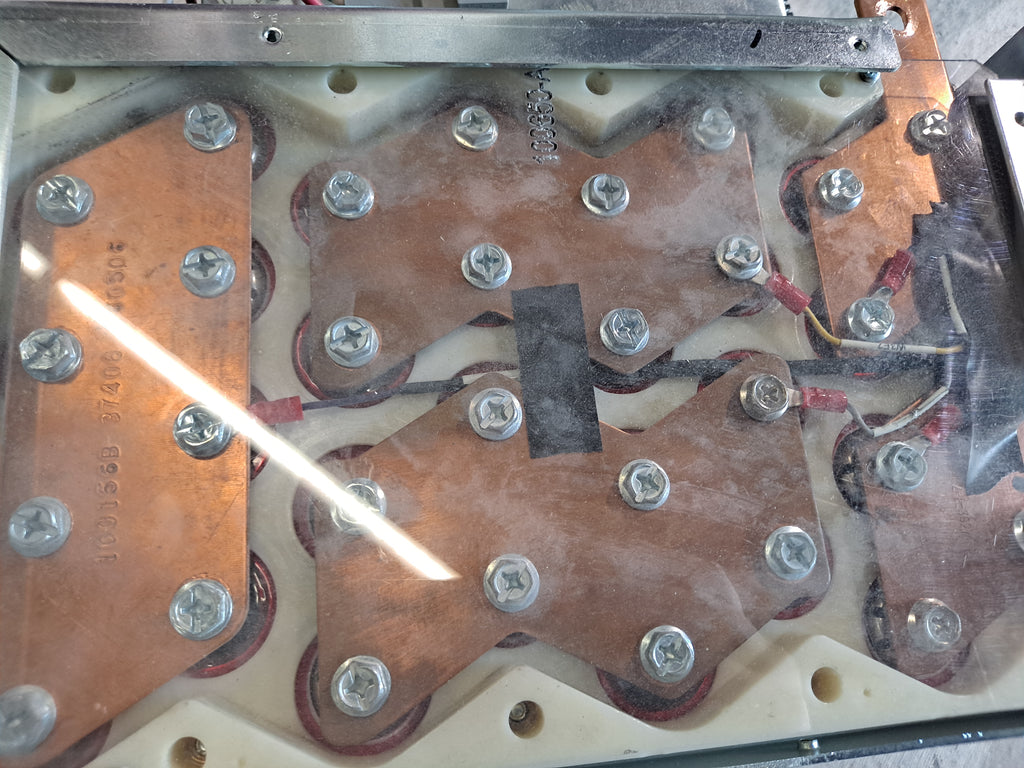

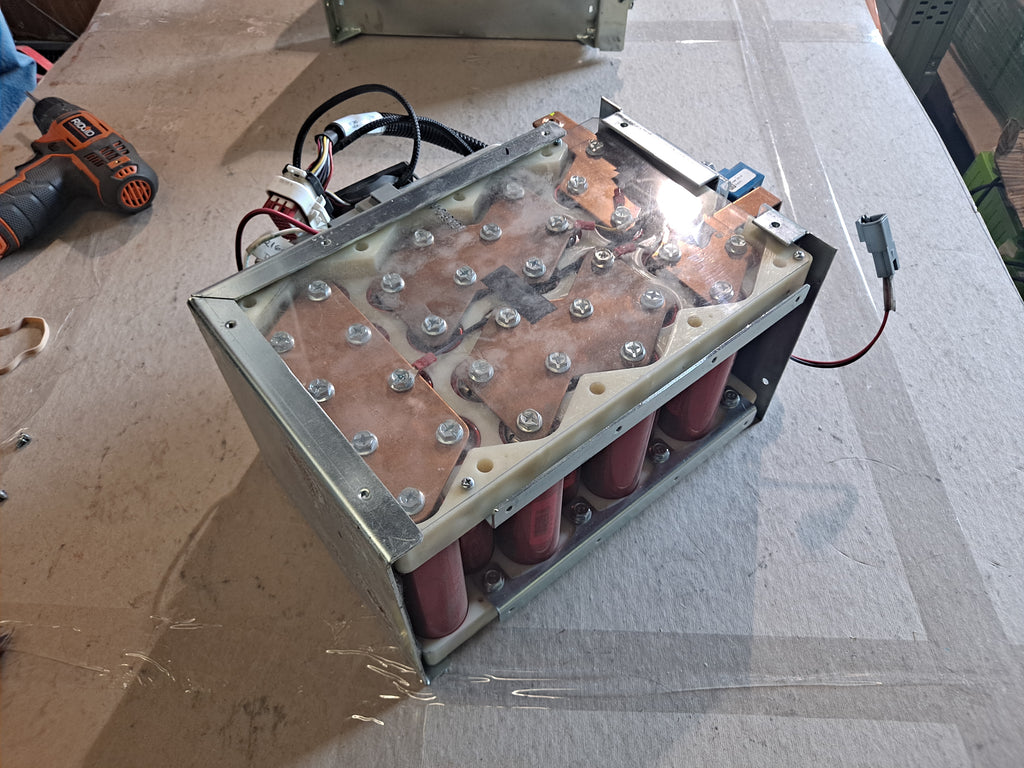

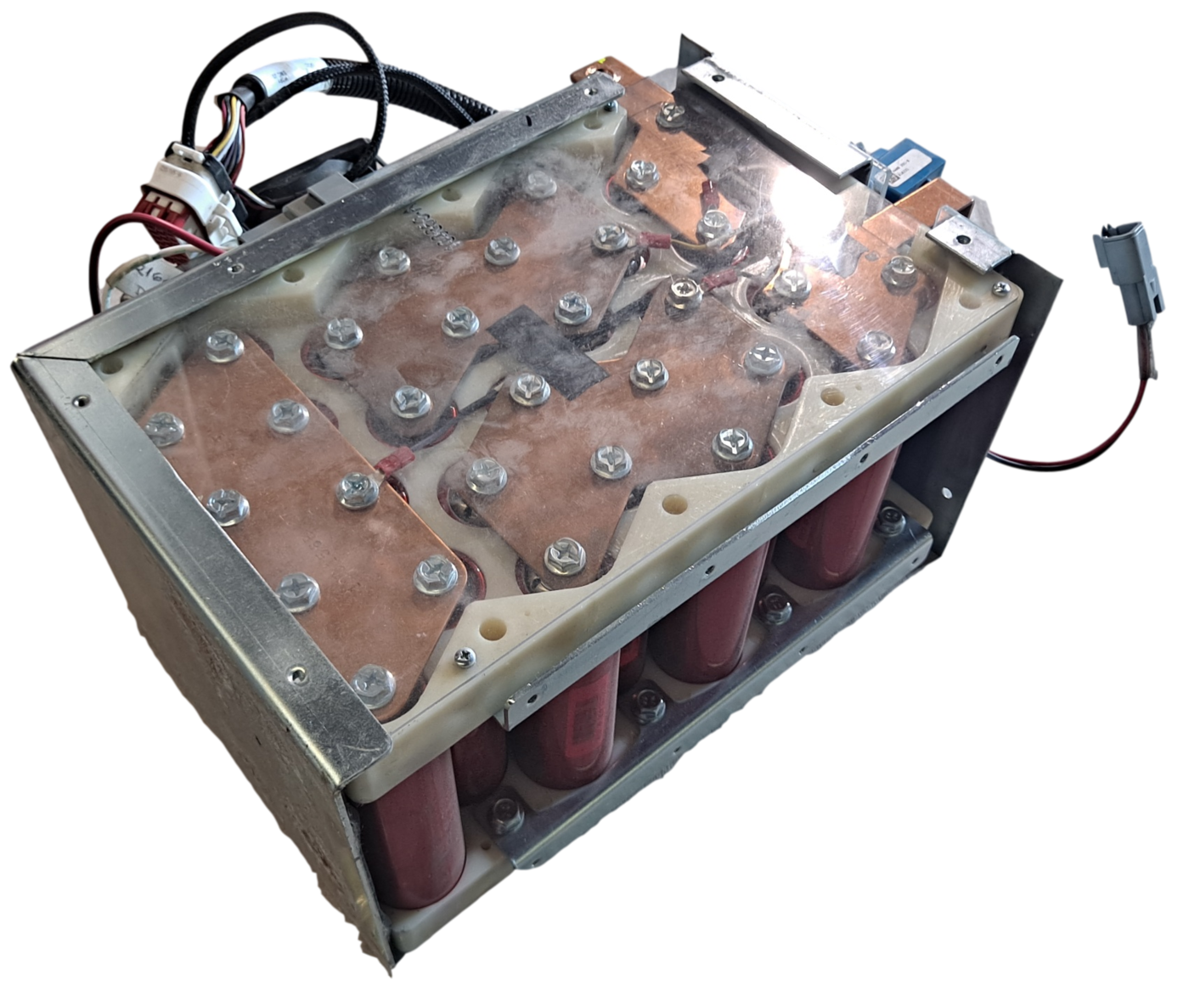

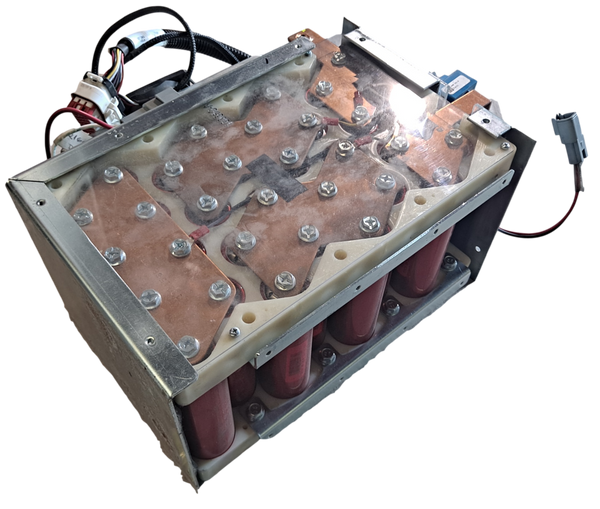

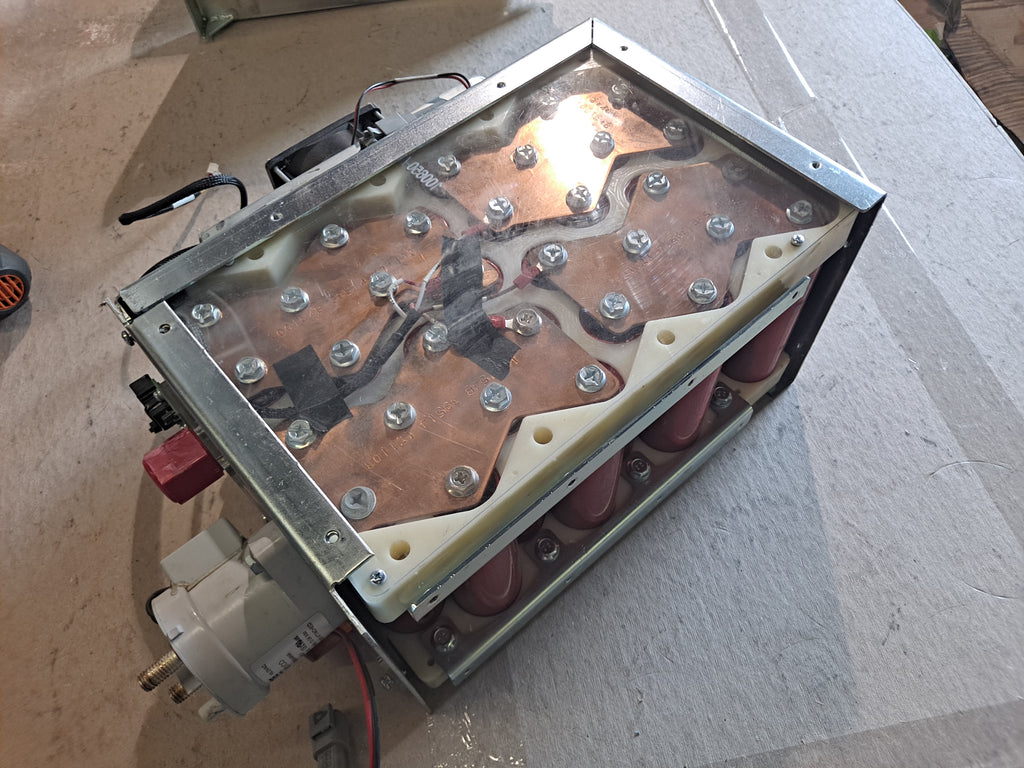

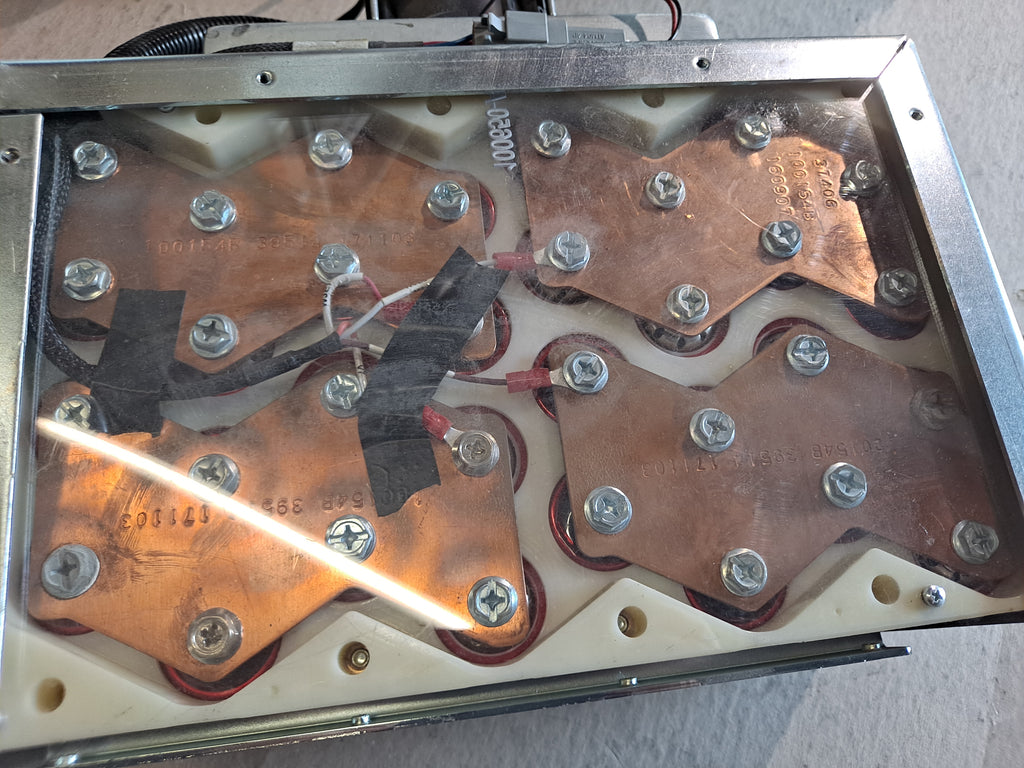

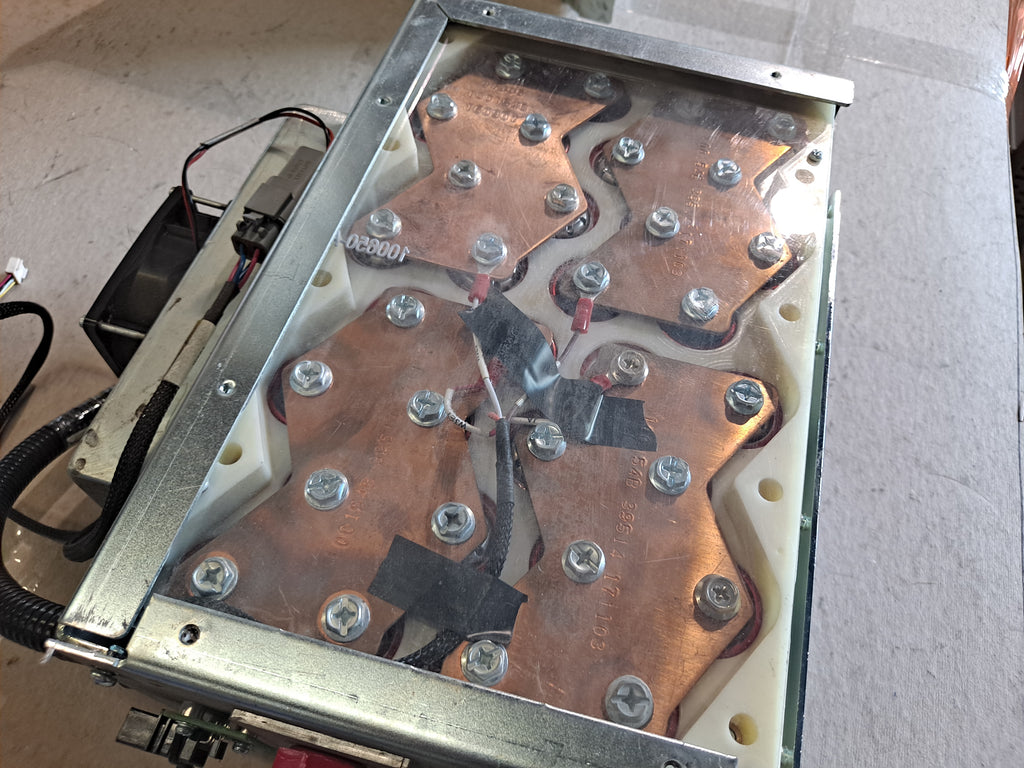

This is the kit that gets removed from the Headway Beast 32 cell modules. You get all the bolts for the headways, the cell holders, acrylic top, and the copper busbars. It is made for 32 Headway cells. You can make a 24v 8s4p module without changing anything. Or if you want to make 2x 12v 16 cell 4s4p modules you can cut the one busbar in half that you see on the left side of the first photo. Make sure you cut out at least 1/4" so when you put it back you don't connect it again. Also if you wanted to make 1 4s8p 12v pack you will just need to bridge with a copper piece. The steel enclosure you see around the 3 sides of the module is not included. This kit will save you a ton of money. It is also honeycomb shaped to save space. Trust me, if you have headway cells and want to build a pack with them this kit will save you time and money for sure. Selling for slightly above scrap value since the kit itself weighs over 6 lbs. These are 1/8" pure copper busbars. 1/8" x 2" copper busbars are made to handle up to 500 amps. If you don't connect to the main positive and negative tab sticking out and connect right to the busbar on the cells you can draw that power. The tab that sticks out on the end cannot handle 500a because it is not wide enough.

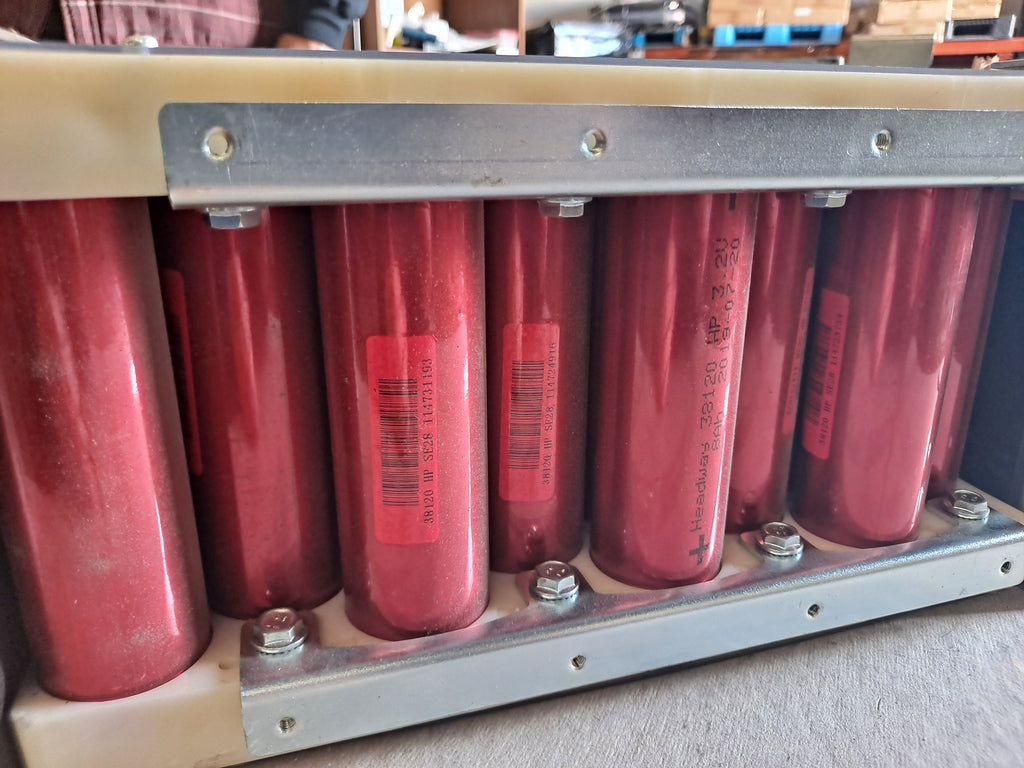

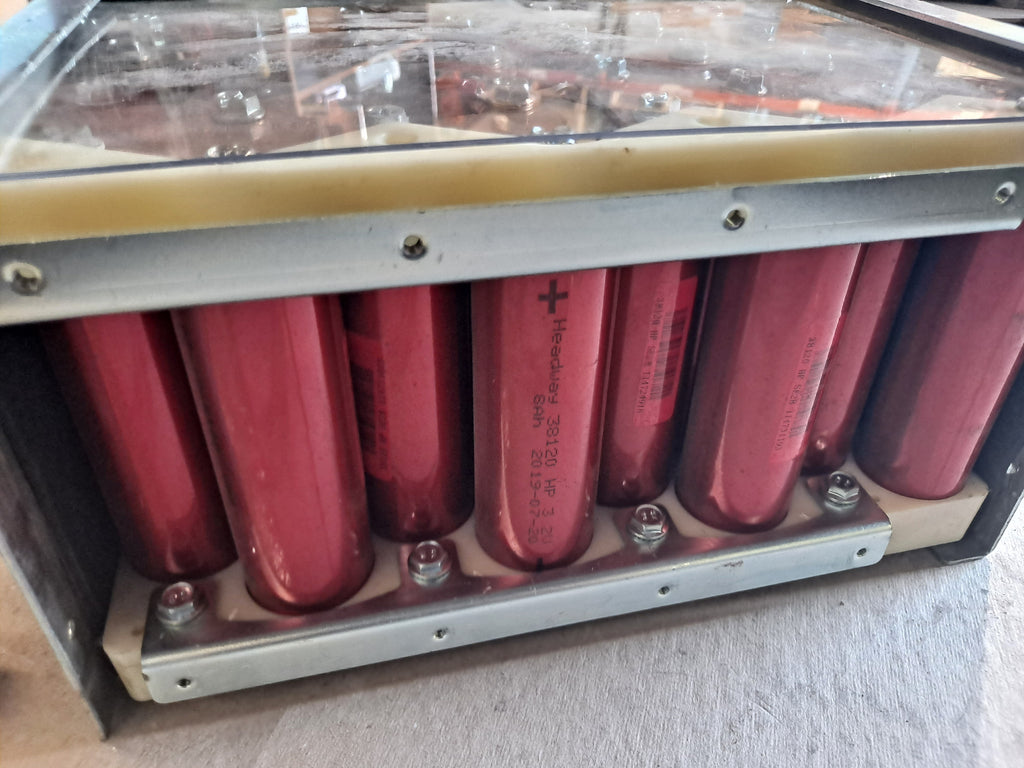

Note this is for the 38120 cells. Not the 40152 cells. The red cells and smaller blue cells these will fit perfect.
