Battery Hookup
12.8v 30ah Lifepo4 Module with 12x 10ah cell
Regular price
$59.99

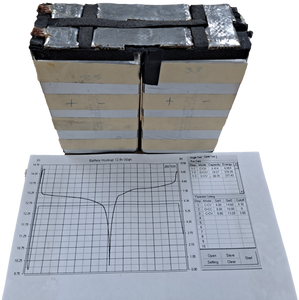

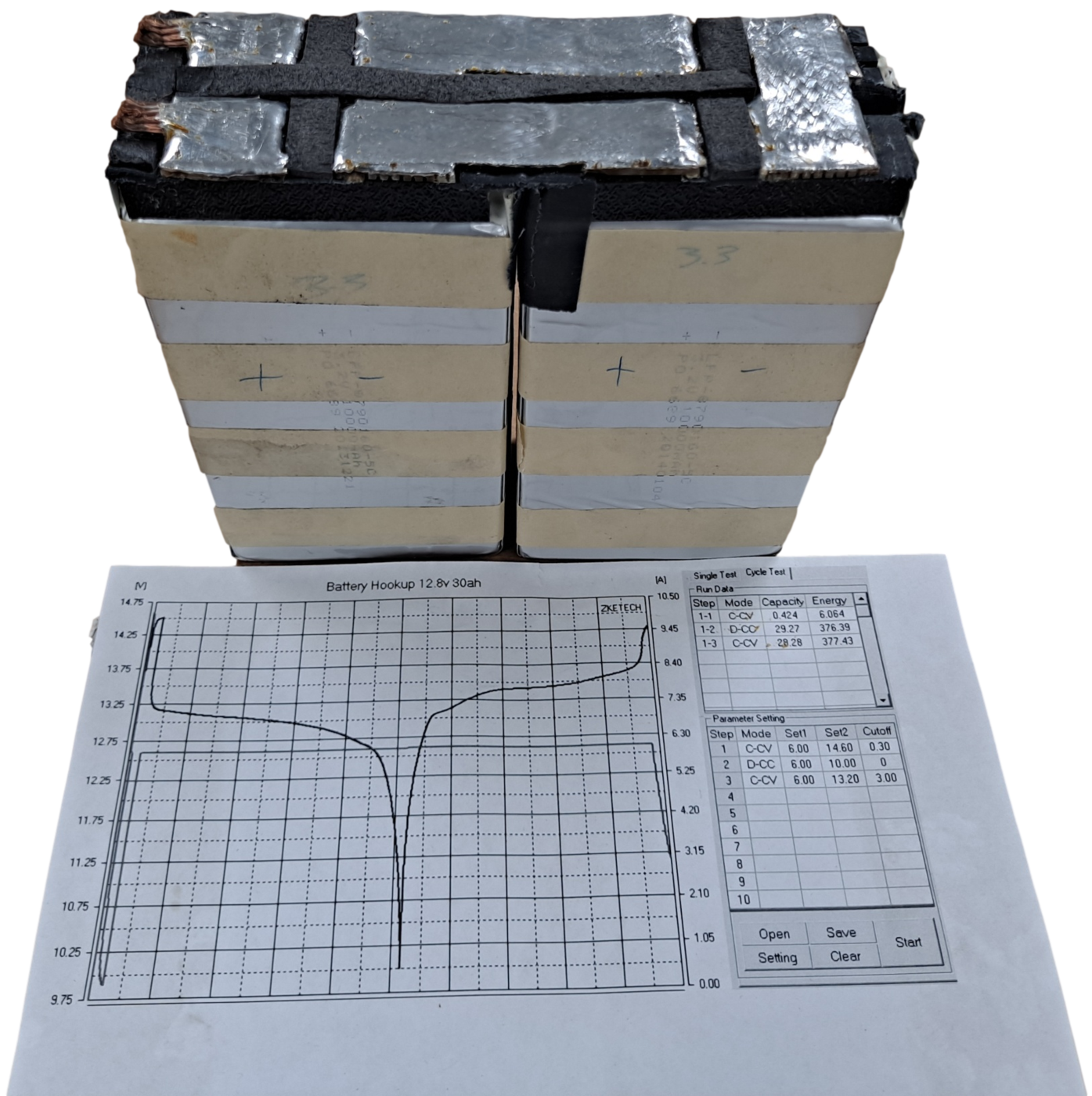

This was is fully tested, it is at 98% capacity and comes with the printout of the test. It is 12 cells in 4s3p configuration. This was pulled out of a module that had a bad BMS and the cells have never been cycled. This is the only one we have unfortunately.
This module is built for power and uses thick connections. This can push 150 amps since the batteries are 5c rated continuous and can pulse 300a (100 amps per cell / 10c)
It is roughly 7" x 7" x 2"
Weight is 7.5 lbs.
Below is the cell rating.
| Chemistry | polymer LFP (8790160-5C) cell, UN approved |
| Capacity |
|
| Cycle life | > 2000 times @ 0.2C rate, IEC standard |
| Charging rate | 10.0 A Max. (1.0C rate) |
| Discharging Rate |
|
| Dimension(LxWxH) | 163mm(6.4") x 92mm(3.6") x 8.9mm(0.3") |
| Weight | 8.6Oz (250 grams) |
