10x 3.2v 280ah Lifepo4 Prismatic 8.96kWh 10s1p - Balanced

Regular price $400.00 $0.00 Unit price per

You can pick up from our Bensalem, PA location for free or we have excellent freight rates which include residential and lift gate service. Free shipping on all orders of $2000 or more.

Comes out to just $40 per 3.2v 280ah EVE cell.

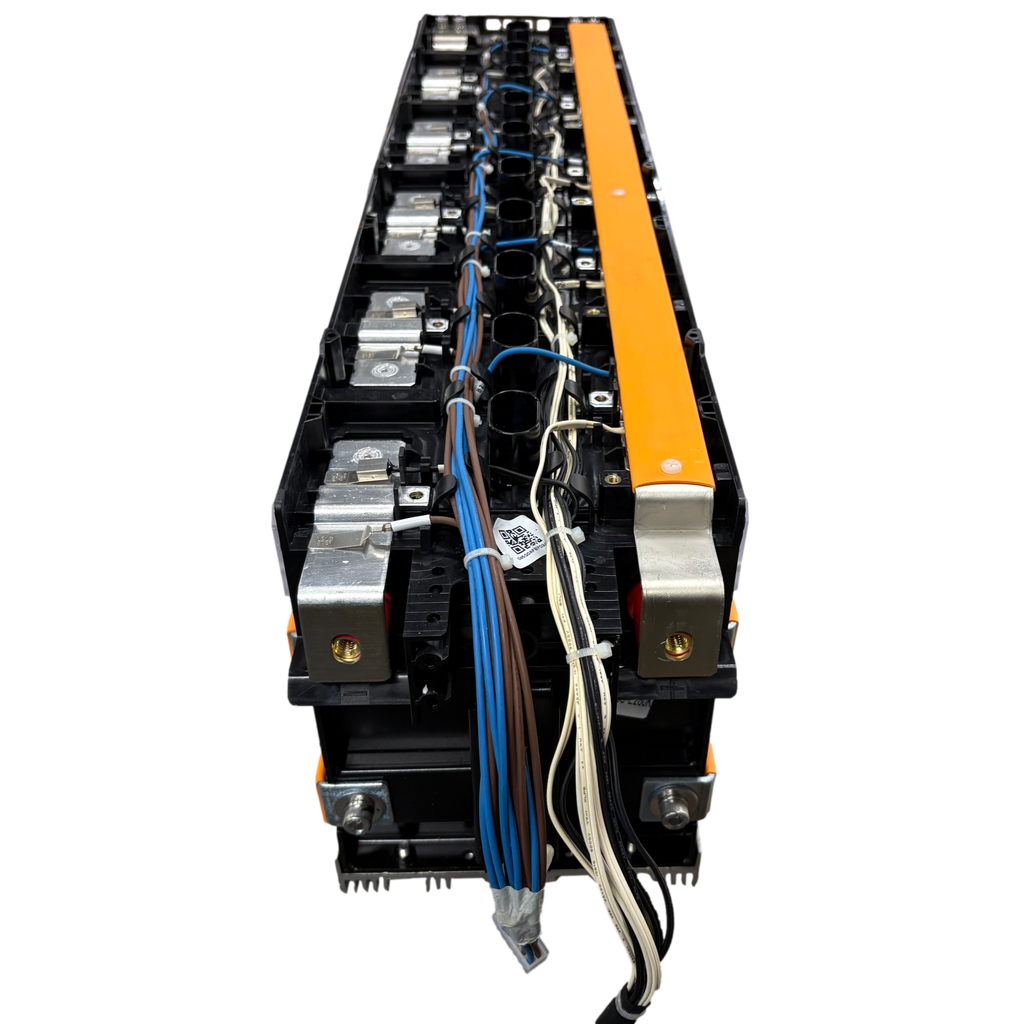

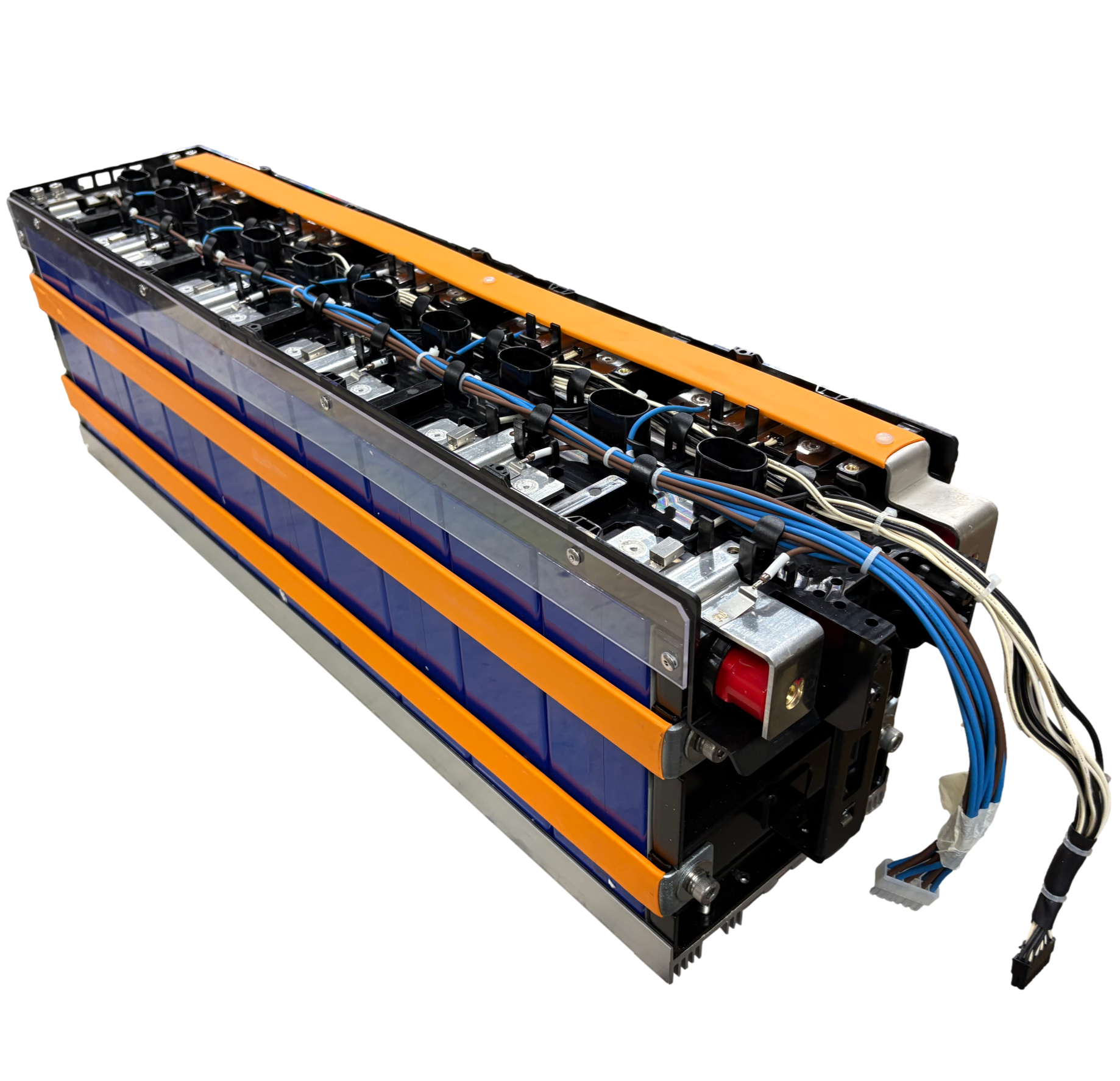

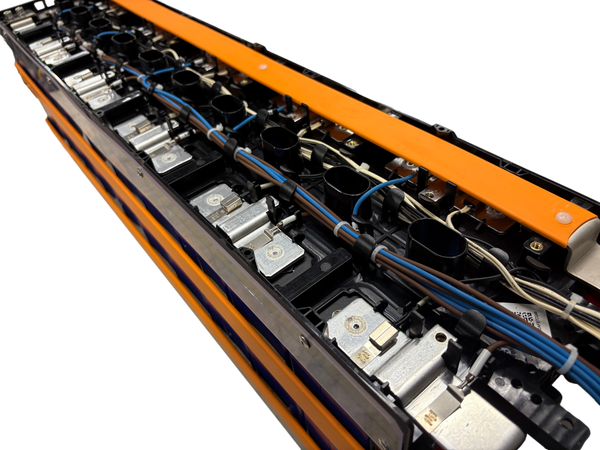

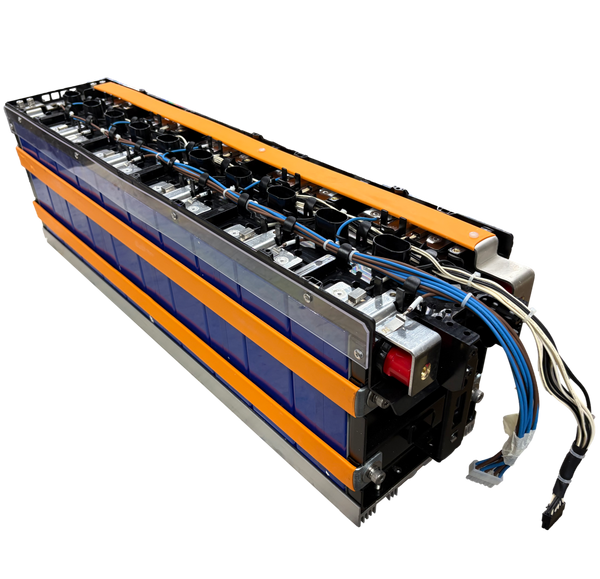

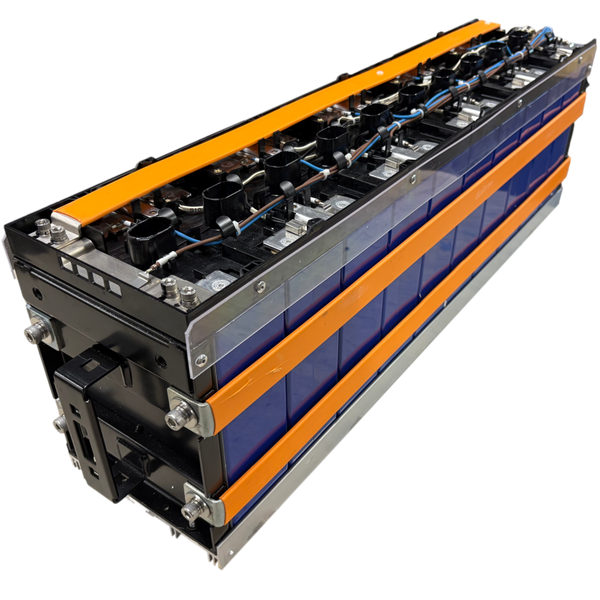

Awesome deal considering each module has 10x 3.2v 280ah cells in 10s1p configuration. The balance lead wires are all there for easily adding your own BMS. The module is 32v 280ah 8.96kWh with 10 cells in 10s1p configuration.

They are used and not capacity tested however we did confirm they are balanced and have good voltage. They were used in a backup power cabinet.

Module weight is approximately 140 lbs.

Module Fully charged - 36.5v (3.65v per cell)
Module Fully discharged - 25v (2.5v per cell)
Recommended max continuous charge and discharge rate - 280a

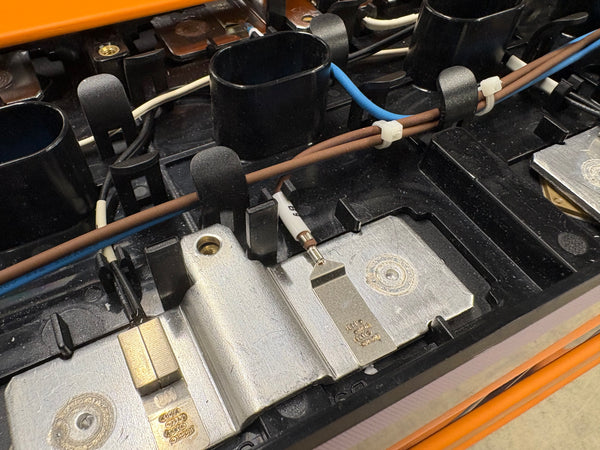

If you want to use this module for cell recovery, take a look at the 4th photo and zoom into the series busbar connections. You'll see the busbar raises up in between the cells. What most customers do is carefully, and at their own risk of course, dremel that raised connection with a flush cutting wheel. This would leave a nice size busbar tab sticking off each cell. Then they pry up that busbar tab a little, drill a hole, then make connections to the busbar with nuts, bolts, and ring terminals.

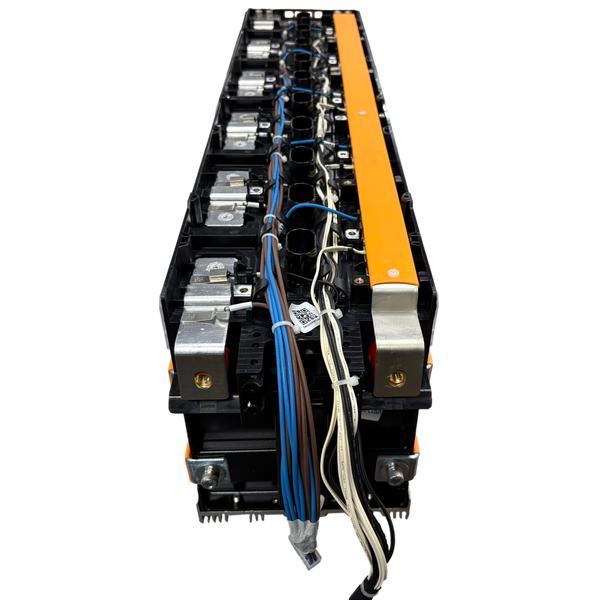

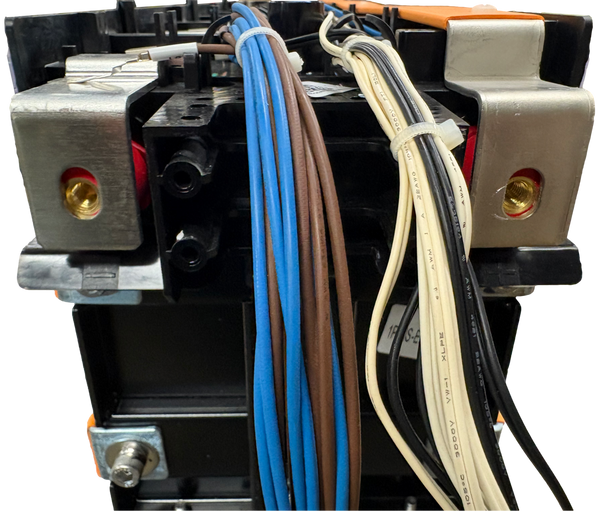

The main positive and negative connections on the outside of each module can be connected with bolts.
