1 broken tube 204.75W Solyndra Solar Panel

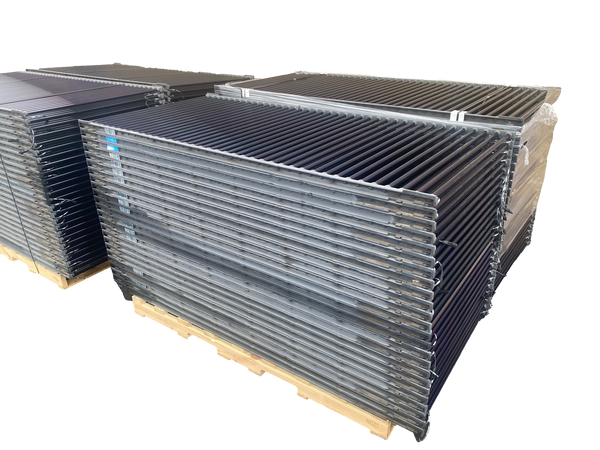

FREE PICKUP FROM OUR CREAM RIDGE, NJ LOCATION. WE WILL ALSO SHIP BUT YOU WILL HAVE TO CALL US FROM 9AM-5PM MONDAY-FRIDAY FOR A SHIPPING QUOTE. THE MORE YOU BUY THE BETTER THE COST OF SHIPPING WILL BE PER PANEL. WE CAN SHIP UP TO 25 PER PALLET BUT THE PALLETS WILL HAVE TO SHIP ON A FLATBED AND YOU WILL NEED SOMEONE TO HELP OFFLOAD WHEN THEY ARRIVE. FLATBED IS THE ONLY WAY TO SHIP SOLAR PANELS THIS SIZE SAFELY SO THEY DON'T GET RUINED AT THE DISTRIBUTION CENTERS WHERE THE FORKLIFT DRIVERS USUALLY DON'T HANDLE WITH CARE. 215-383-9009 IS OUR NUMBER. IF YOU NEED THESE SHIPPED JUST CALL, DON'T CHECKOUT BECAUSE THE SHIPPING WILL NOT BE ACCURATE. IF YOU WANT TO RENT A UHAUL TRAILER FOR PICKUP A GOOD SIZE IS 5X8 UTILITY TRAILER. ONLY $30 PER DAY TO RENT.

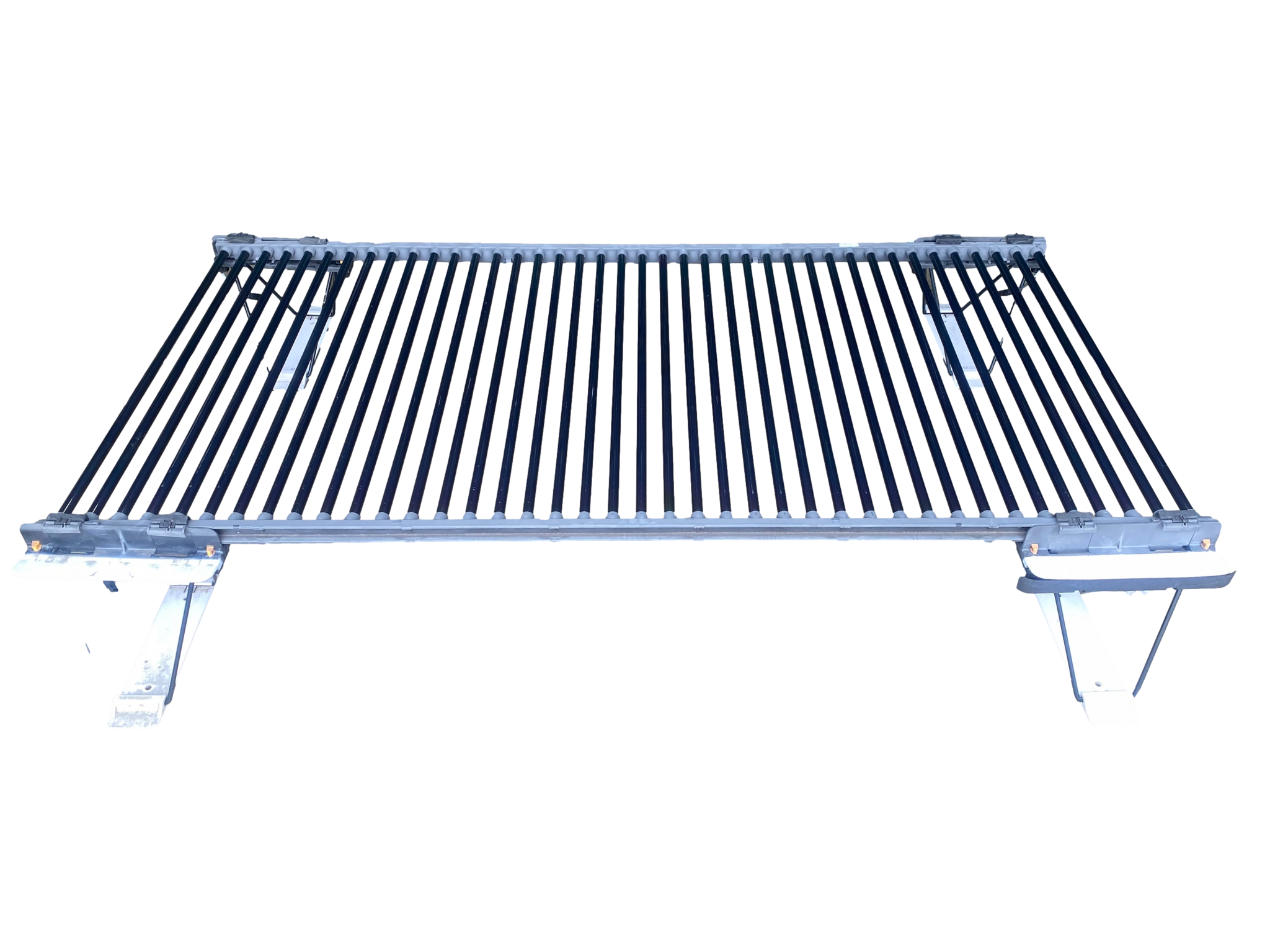

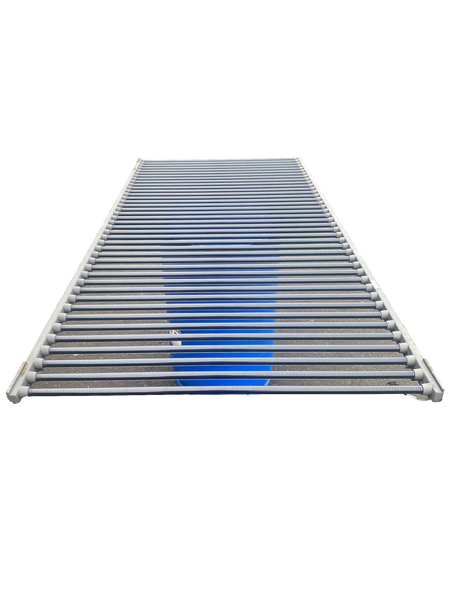

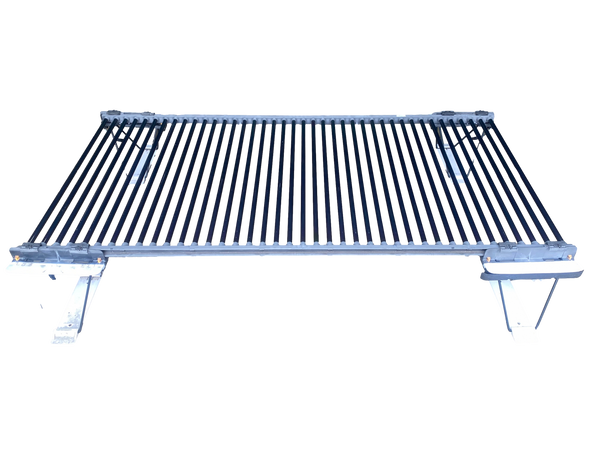

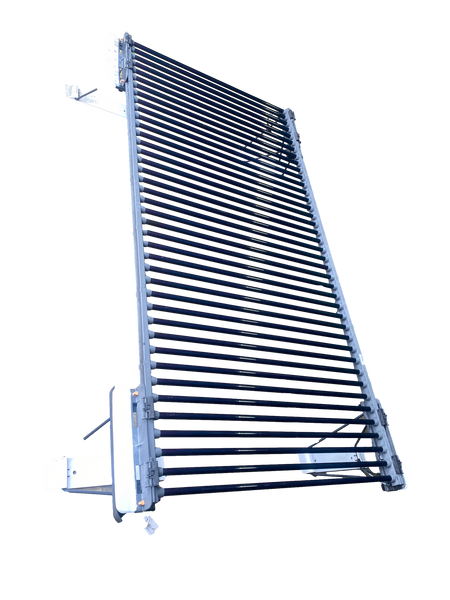

THESE SOLAR PANELS ARE MADE OF CYLINDRICAL SOLAR TUBES. THE SOLAR PANEL CAN HANDLE UP TO 130 PMH WINDS WITH NO NEED FOR ANCHORING OR BOLTING THEM TO YOUR ROOF. WE DON'T HAVE THE MOUNTS ANYMORE BUT YOU CAN USE 2X4'S WITH A U BRACKET. YOU JUST WANT THEM TO BE MOUNTED 6-12" OFF THE FLOOR SO IF IT SNOWS THE SNOW WILL FALL THROUGH THE SOLAR TUBES. THESE SOLAR PANELS WERE ON A SAMS CLUB ROOF FOR 5 YEARS AND WILL WORK LIKE NEW. EACH LITTLE TUBE IS A 100V TUBE SO EVEN IF 1 TUBE BREAKS YOU'LL STILL GET 95% OF THE OUTPUT. ALSO IF YOU PAINT YOUR ROOF A GLOSSY/REFLECTIVE WHITE COLOR YOU WILL GET A HIGHER OUTPUT.
THESE MODULES ALLOW FOR SNOW TO PASS THROUGH DUE TO THE DESIGN. IF YOU HAVE A FLAT ROOF THESE ARE PERFECT. ALSO CAN JUST GROUND MOUNT THEM FLAT TOO. THESE SOLAR PANELS WERE ALL CONNECTED WITHOUT ACTUALLY BEING BOLTED TO THE ROOF. SUCH AN AMAZING DESIGN.

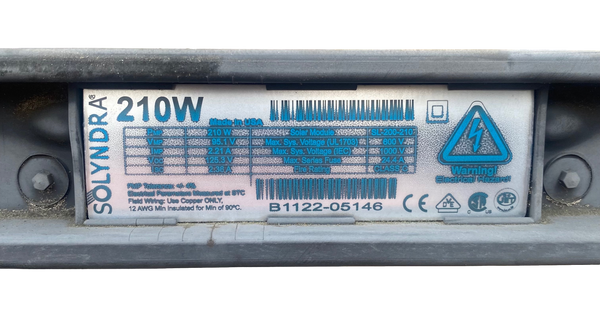

DC Electrical Characteristics
- STC Power Rating 210W
- PTC Power Rating 194.2W 1
- STC Power per unit of area 7.9W/ft2 (84.5W/m2)
- Peak Efficiency 8.45%
- Power Tolerances -4%/+4%
- Number of Cells data not available
- Nominal Voltage not applicable
- Imp 2.21A
- Vmp 95.1V
- Isc 2.36A
- Voc 125.3V
- NOCT 44°C
- Temp. Coefficient of Power -0.38%/K
- Temp. Coefficient of Voltage -0.351V/K
- Series Fuse Rating 24A
- Maximum System Voltage 1000V
- Type Cylindrical CIGS
- Output Terminal Type Tyco SolarLok Connector MC4
- Frame Color Black
- Length 89.8in (2,280mm)
- Width 42.9in (1,090mm)
- Depth 1.4in (36mm)
- Weight 70.1lb (31.8kg)
200 Series Solar Panel Mounts Require No Tools
Light weight and simple installation means fast projects and low cost. The 200 Series requires no tools for installation. The light weight panels install without penetrations or array grounding, making this the easiest and fastest-to-install rooftop solar system yet. Ideal for older or “value engineered” buildings, the low distributed roof load is 2.8 pounds per square foot. Snap together mounts dramatically lower labor costs and shorten project times for large rooftop solar installations. This minimizes business disruption and makes moving the system for future roofing, retrofit or ownership changes a simple process.
Improved light collection makes the 200 Series our most powerful panel yet, especially when combined with a white, “cool roof”. Individual panels are rated as high as 220Wp.
Lower LCOE and Increased ROI
The ease of installation, low balance of system costs and power of the 200 Series provides significantly lower levelized cost of electricity and contributes to high returns on investment for the customer.
