2x 32v 280ah Lifepo4 Prismatic 10s1p

You can pick up from our Bensalem, PA location for free or we have excellent freight rates which include residential and lift gate service. Free shipping on all orders of $2000 or more.

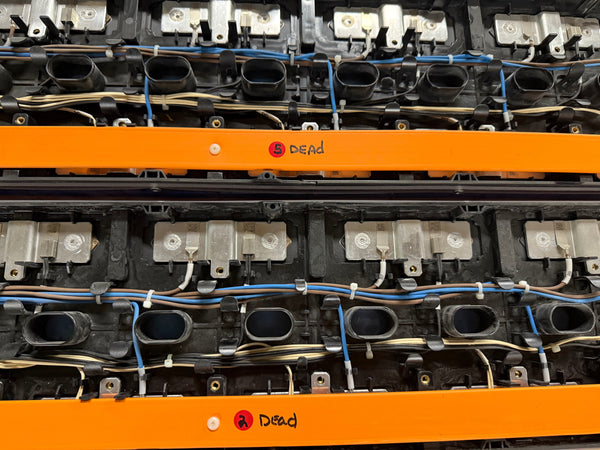

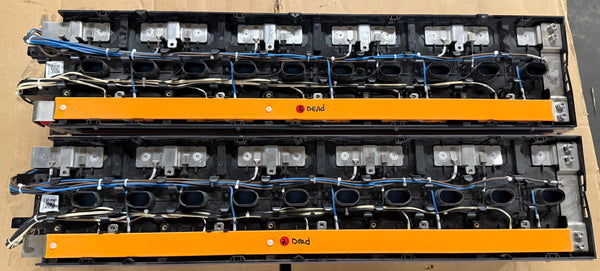

Here are 2 batteries. One battery has 8 out of 10 cells with good voltage and the other battery has 5 out of 10 cells with good voltage. You will get a total of 13x 3.2v 280ah EVE cells with good voltage.

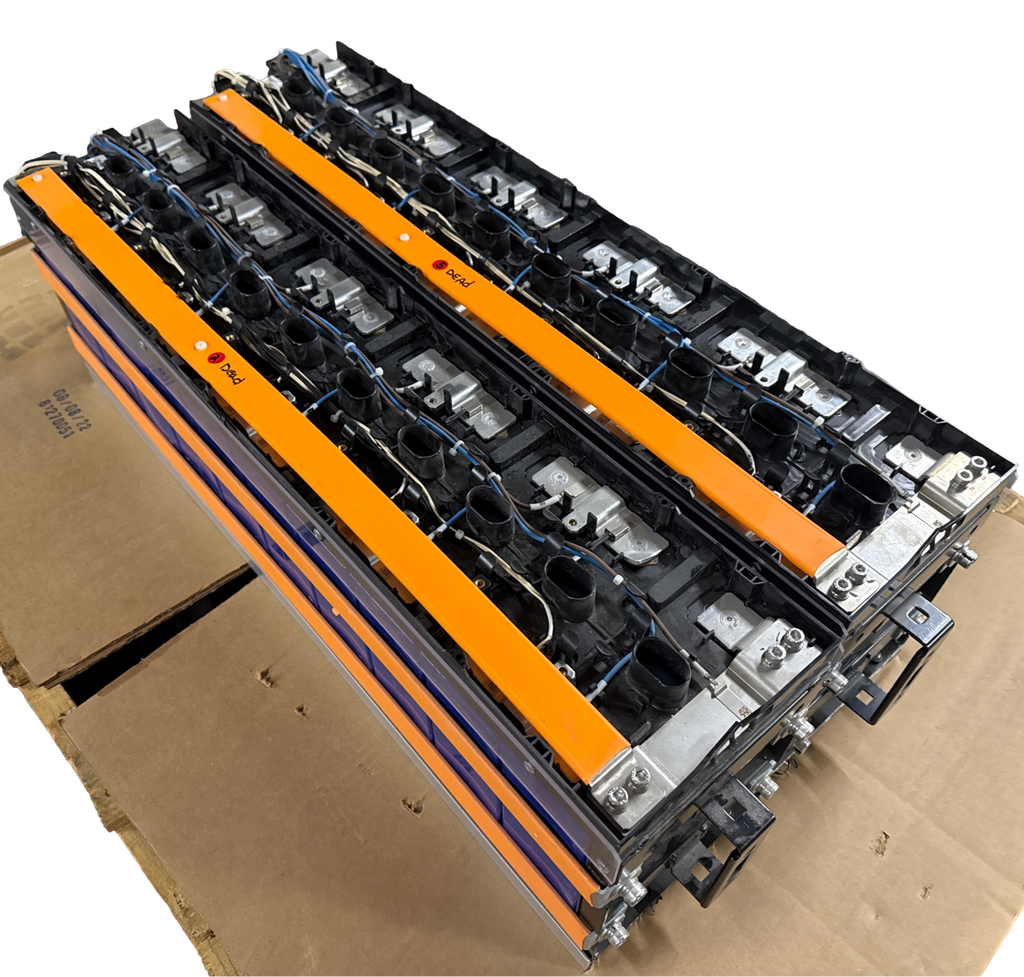

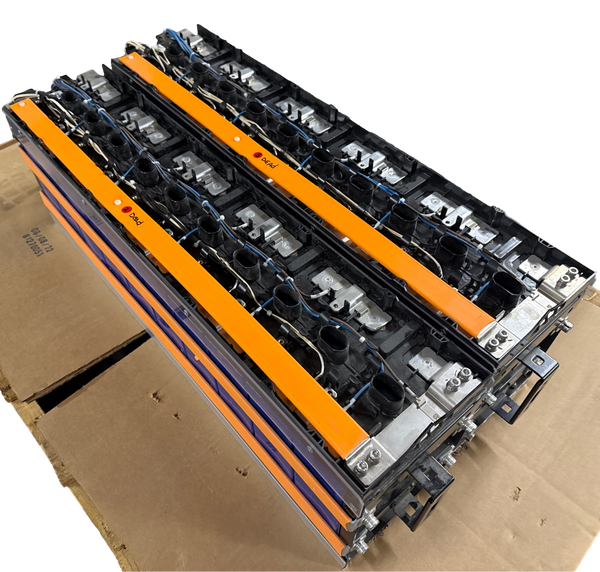

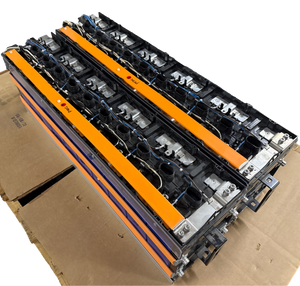

Each module is 32v 280ah 8.96kWh with 10 cells in 10s1p configuration.

Module weight is approximately 140 lbs.

Module Fully charged - 36.5v (3.65v per cell)
Module Fully discharged - 25v (2.5v per cell)
Recommended max continuous charge and discharge rate - 280a

If you want to use this module for cell recovery you'll see the busbar raised up in between the cells. What most customers do is carefully, and at their own risk of course, dremel that raised connection with a flush cutting wheel. This would leave a nice size busbar tab sticking off each cell. Then they pry up that busbar tab a little, drill a hole, then make connections to the busbar with nuts, bolts, and ring terminals.

The main positive and negative connections on the outside of each module can be connected with bolts.

A lot of customers are keeping the cells in the packs, cutting the series busbars, then making bridge connections around the bad cells.
