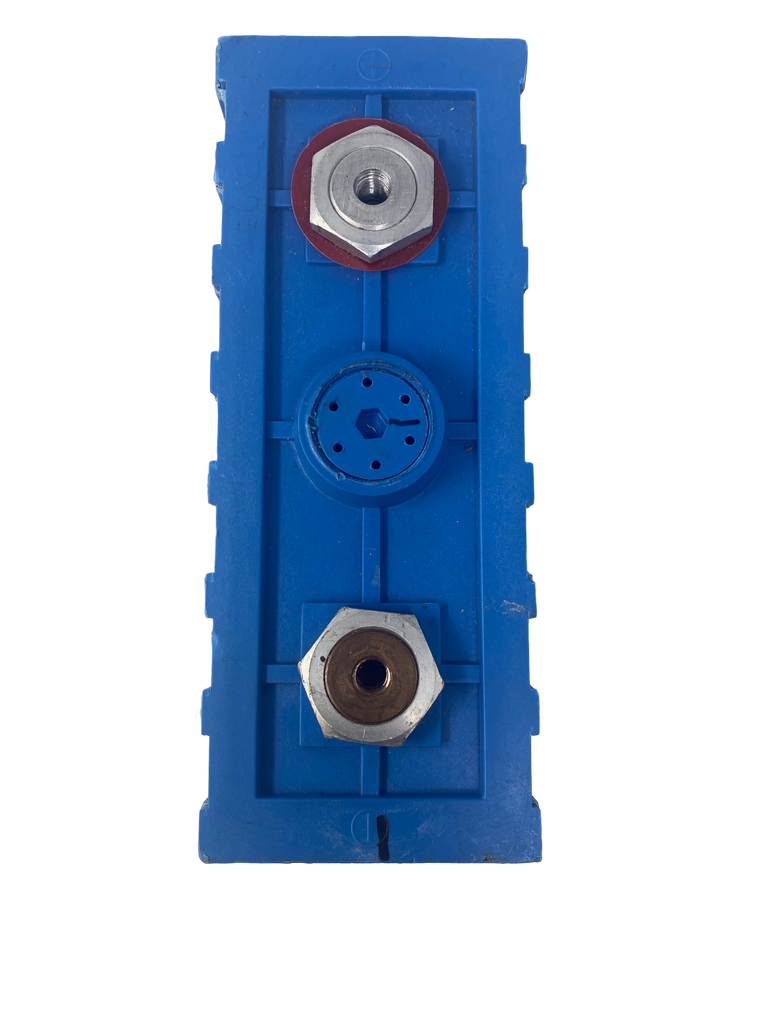

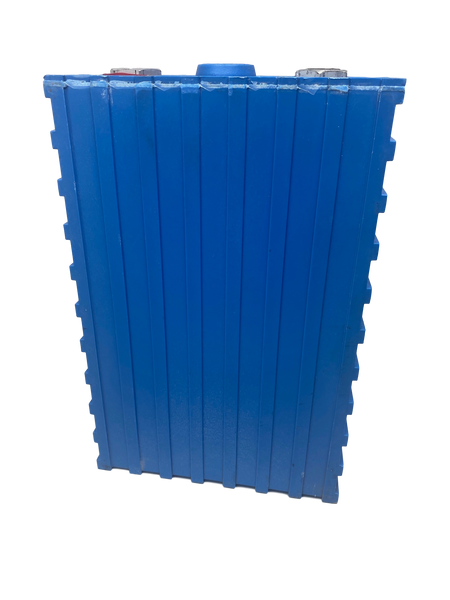

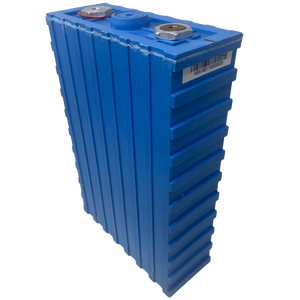

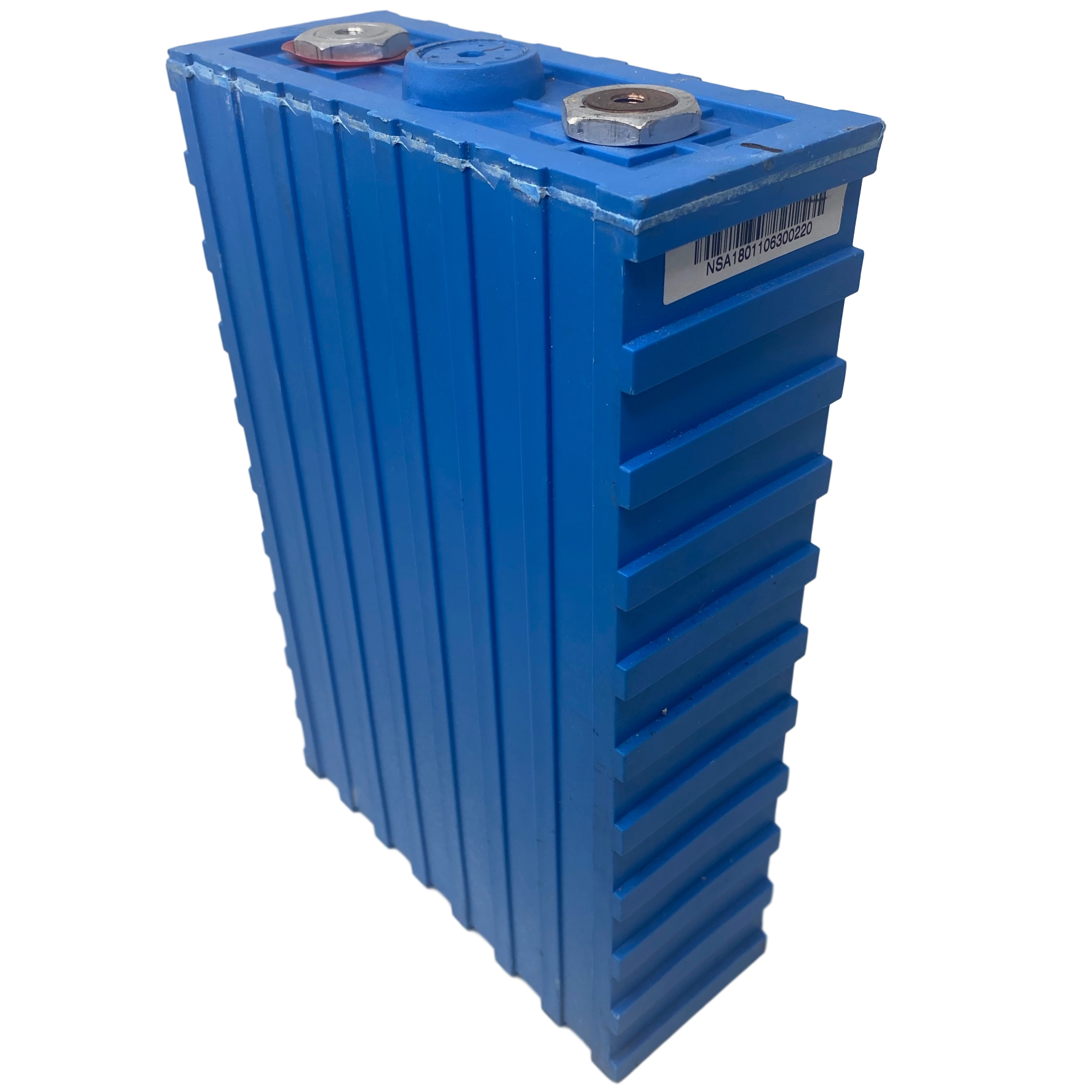

CALB PRISMATIC 3.2V 200AH LIFEPO4

Limited stock.

These were recovered in working condition and have good voltage. They are untested.

M8-1.25 bolts are not included.

These are excellent batteries and hard to find with this shell material.

• Shell Material: Plastic Rated
• capacity: 200Ah
• Internal impedance: 0.2~0.3mΩ
• Nominal voltage: 3.2V
• Dimensions(L*W*H): 183*72*280mm
• Weight: 5.6±0.10kg
• Recommend Constant Current: 200A(1C)
• End-of-Discharge Voltage: 2.5V
• Recommend Constant Current: 100A(0.5C)
• Charge Voltage: 3.65V
• Maximum Continuous Discharging Current: 400A（3min）
• Maximum Pulse Discharging Current: 600A（30S）
• Charge Voltage: 3.65V
• Max Continuous Discharge Current: 200A(1C)
• Cycle life (80%DOD): 4000 cycles
• Charging Temperature: -5~60°C
• Discharging Temperature: -30~60°C
