Recovered 8s 30a 24v Lifepo4 BMS

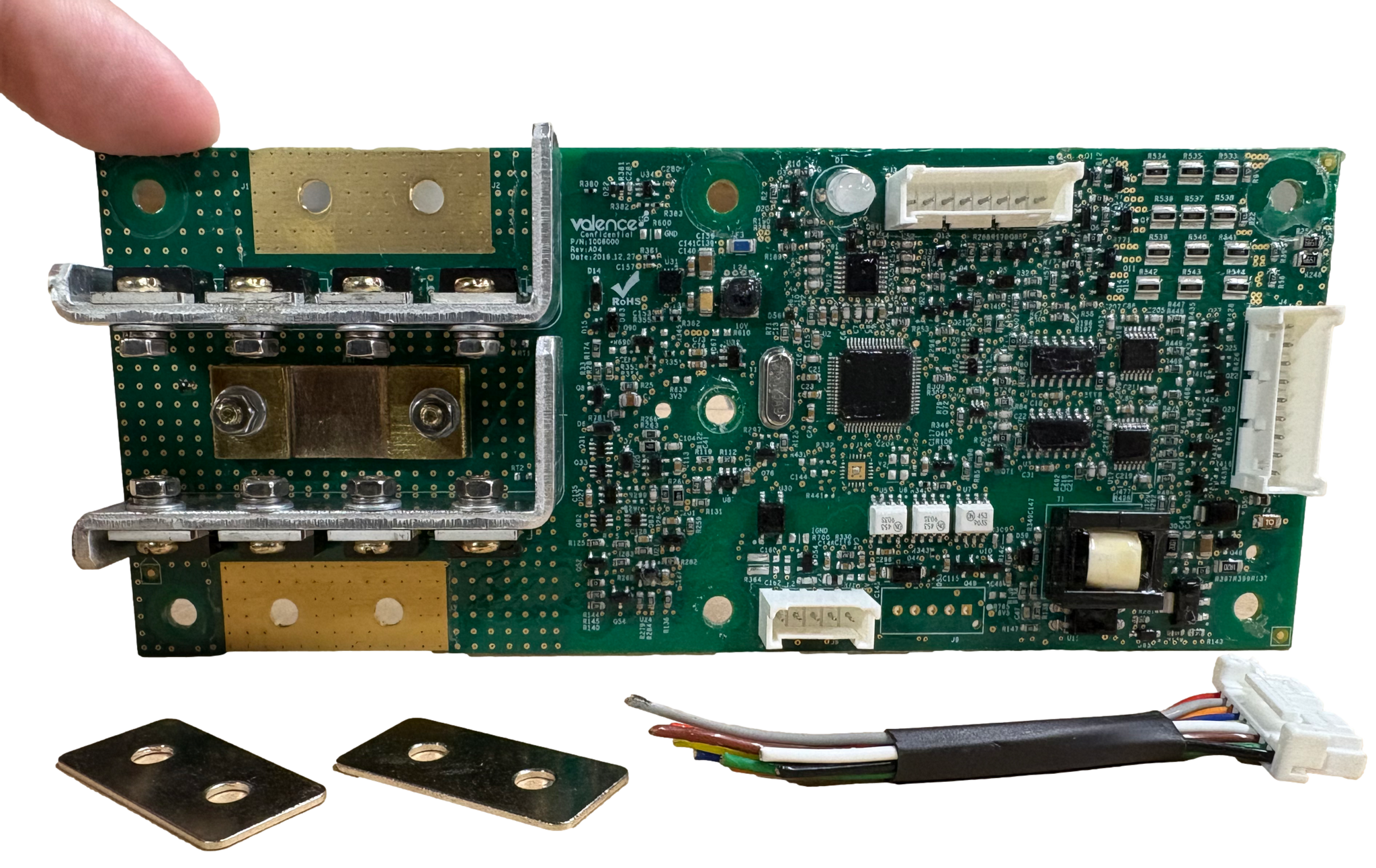

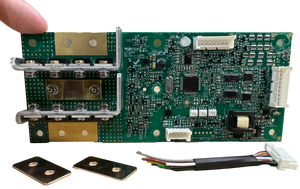

These BMS units were all recovered from 24v batteries. We include the balance lead wires as well.

These are for 8s batteries. The top left tab goes to the battery negative (B-) and the bottom left tab is used for your new negative for charge and discharge (C-). The busbars you see simply fit over top of the B- and C- connections pads.

The balance leads go from right to left starting with the black wire which goes to the main negative, green wire goes to cell #1 positive, brown to cell #2 positive, etc, and ending with the red wire which goes to the main positive.

Fully charged cutoff at 3.65v per cell and cully discharged cutoff at 2.5v per cell. 30a continuous charge/discharge and 60a pulse (10 seconds). Passive balancing occurs near full charged voltage while charging.
