A123 36V 9.2ah Power Module - 48x 26650 LIFEPO4 Cells

36V EMC MODULES WITH 48X 26650 CELLS! WE TESTED EACH MODULE TO GUARANTEE THAT THE CELLS ARE ALL BALANCED AND HAVE GOOD VOLTAGE. THE PACKS HAVE A123 26650 M1B cells.

PRICE COMES OUT TO JUST $1/CELL FOR 48 A123 26650 M1B CELLS THAT CAN HANDLE 50A CONTINUOUS. THESE ARE TRUE POWER CELLS.

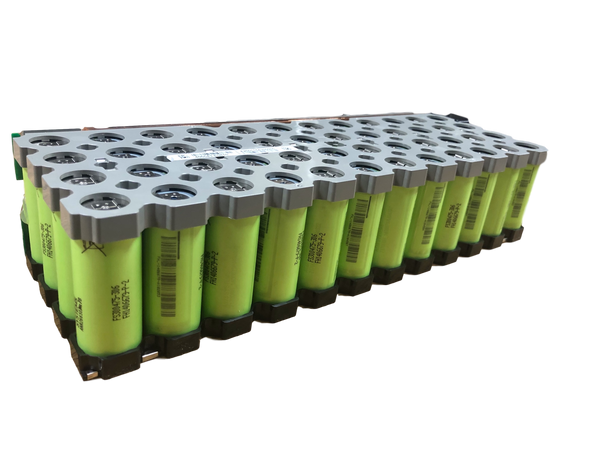

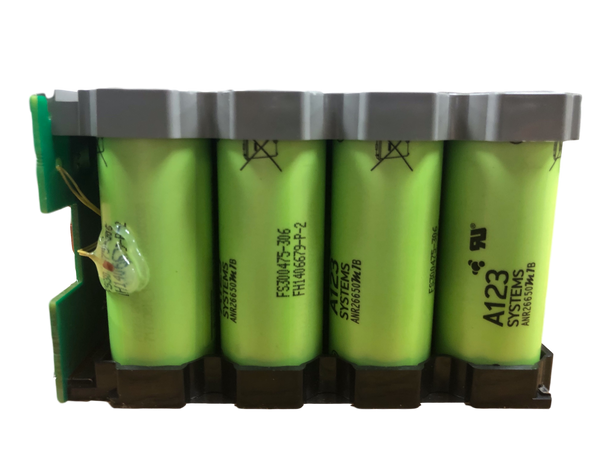

THIS PACK IS 12S4P. 39.6V, 9.2AH, 364WH. YOU SHOULD BE ABLE TO DISASSEMBLE THESE INTO 12V 4S4P PACKS. YOU WILL NEED A T8 SECURITY BIT TO OPEN THE CASE, ONE THAT IS AT LEAST 2 INCHES LONG. THERE IS A SCREW UNDER THE STICKER TOO. TAKES A FEW SECONDS TO OPEN THESE CASES.

WE TESTED A LOT OF THESE AND THE CELLS TEST OUT GREAT SINCE THESE WERE USED IN A HOSPITAL SETTING. THE PACK IS BEAUTIFUL AND ALL THE CELLS ARE TESTED. WE ARE GUARANTEEING NO DEAD CELLS!

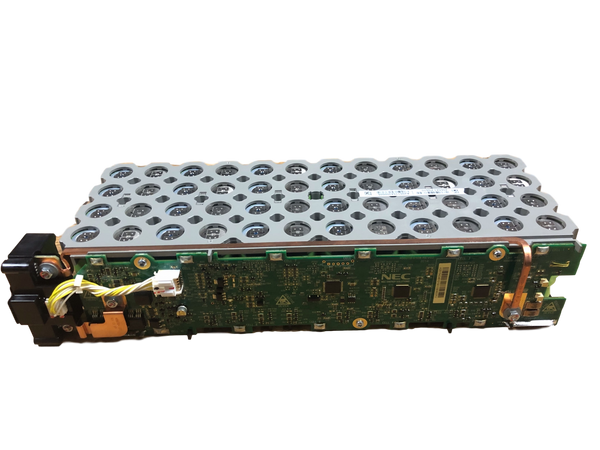

THE BMS IS PROPRIETARY, MAYBE YOU CAN FIGURE OUT THE OUTPUT AND COMMUNICATION BUT WE RECOMMEND ADDING YOUR OWN BMS FOR CHARGING AND DISCHARGING. OR BREAK DOWN AND THE SALVAGE THE VALUABLE CELLS. YOU CAN ALSO RECOVER SOME GOOD COPPER AND HIGH GRADE PCB FOR SCRAP.

THIS WOULD BE A GREAT OPTION FOR AN EBIKE, POWERWALL, FORKLIFT, GOLF CART, ETC.

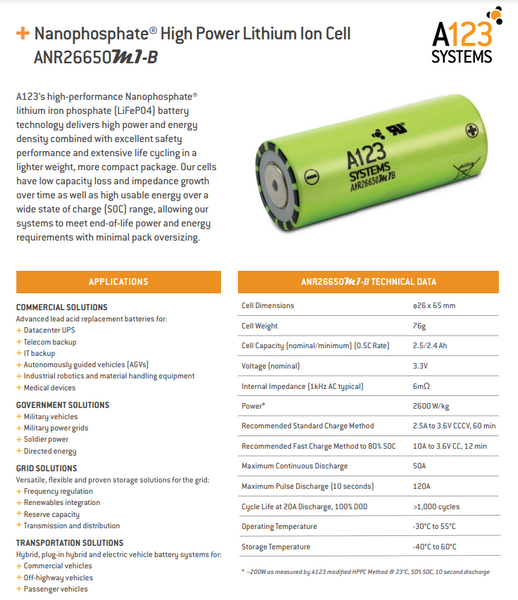

CHECK OUT THE AWESOME SPECS OF THE CELLS. EACH CELL CAN HANDLE UP TO 50A CONTINUOUS. SPEC SHEET IS IN THE 2ND PHOTO.

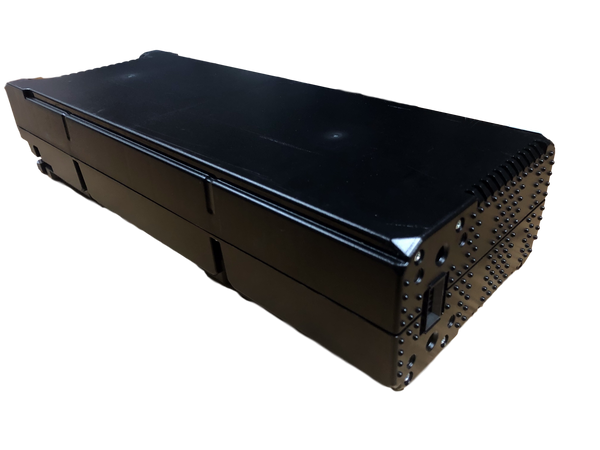

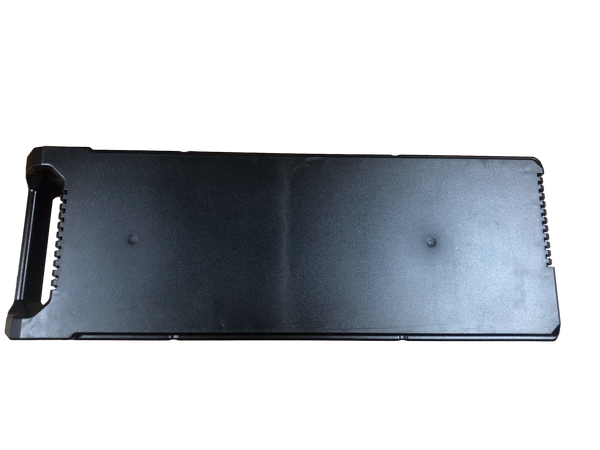

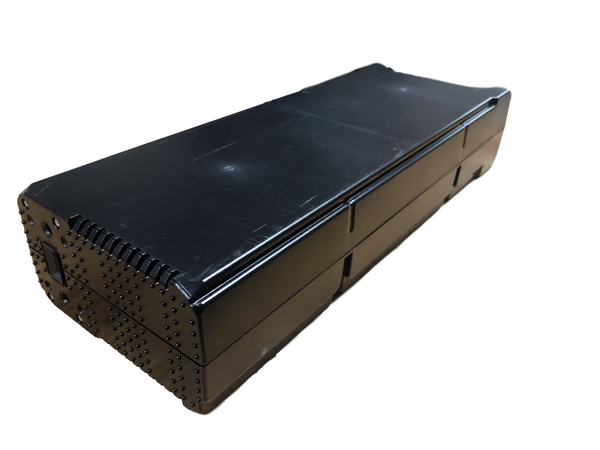

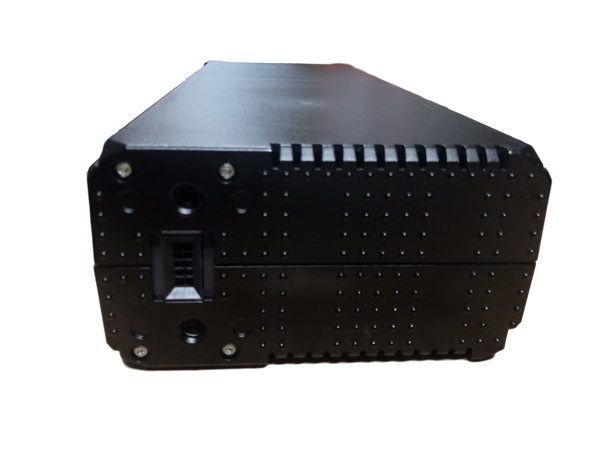

BATTERY MODULE INSIDE IS AROUND 14" X 5" X 3". WITH THE ENCLOSURE IS 16" X 5.5" X 3". WEIGHT IS 10.5 LBS.

WE HAVE SOME 12S 30A AND 100A BMS UNITS THAT WOULD WORK NICE WITH THESE.
