25.6v 280ah 7.16kWh Lifepo4 8 Cell Modules

Just 1 module left at the moment.

You can pick up from our Bensalem, PA location for free or we have excellent freight rates which include residential and lift gate service. We also have a shipping calculator at the bottom of this page to quickly estimate your shipping costs.

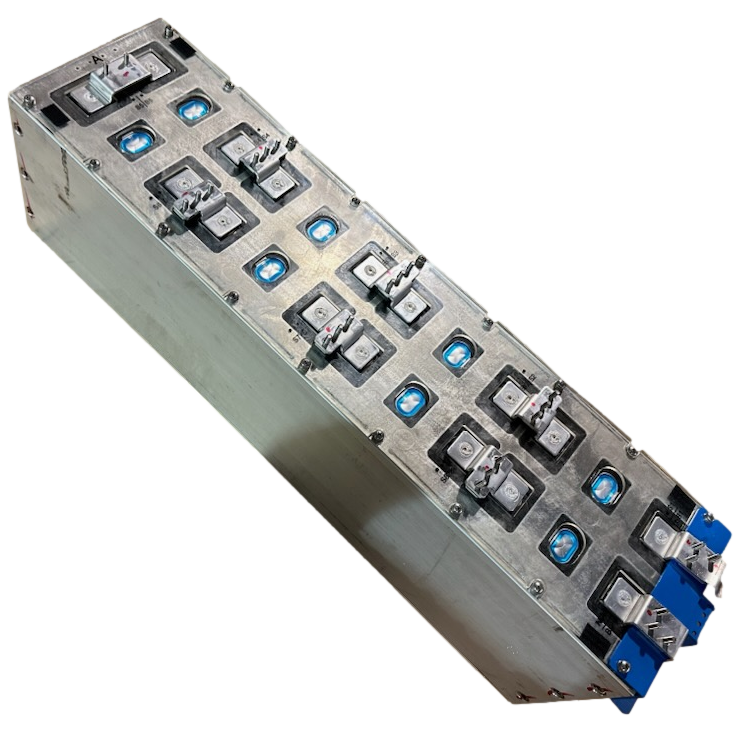

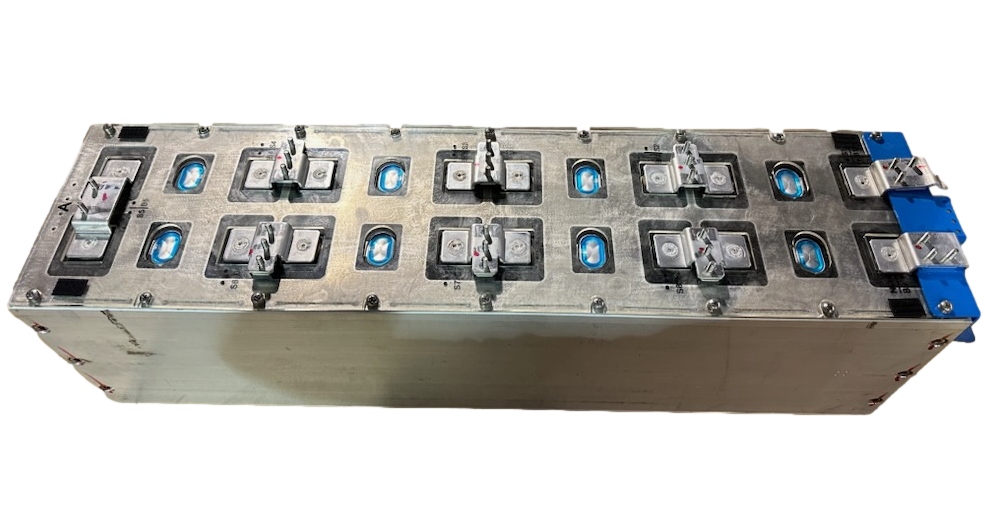

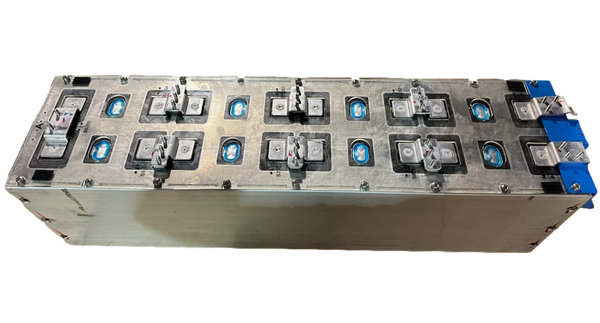

Each module has 8x 3.2v 280ah cells in 8s1p configuration. There is no BMS however as you can see you can easily add a BMS to it. This is a perfect 24v battery and you can series 2 of them to make 16s 48v batteries. They are built like tanks.

They are used and not capacity tested however we did confirm they are relatively balanced and every cell has good voltage. We recommend top balancing the batteries. Charge each cell up to 3.65v then you can add your BMS. There are 8 cell balance chargers that would work really well too. Everyone so far has reported 270ah and higher so these seem to have not cycled too many times.

Module weight is approximately 123 lbs.

Dimensions are 8.5" tall x 7.5" wide x 30" deep

Fully charged - 29.2v (3.65v per cell)
Fully discharged - 20v (2.5v per cell)
Recommended max continuous charge and discharge rate - 280a

None of the cells in these modules have self discharge issues and all modules are in really nice condition overall. Perfect for many different applications.
